Zircon U-Pb chronology and geochemical characteristics of Late Si-lurian monzogranite in Ongniud Bannar, Inner Mongolia

CHEN Jingsheng; LIU Miao; LI Bin; LI Wei; LI Weiwei; YANG Fan; WANG Yan

2017 Vol. 36, No. 8

Article Contents

Article navigation > Geological Bulletin of China > 2017 > 36(8): 1359-1368

Next Article Previous Article

CHEN Jingsheng, LIU Miao, LI Bin, LI Wei, LI Weiwei, YANG Fan, WANG Yan. Zircon U-Pb chronology and geochemical characteristics of Late Si-lurian monzogranite in Ongniud Bannar, Inner Mongolia[J]. Geological Bulletin of China, 2017, 36(8): 1359-1368.

Citation:

CHEN Jingsheng, LIU Miao, LI Bin, LI Wei, LI Weiwei, YANG Fan, WANG Yan. Zircon U-Pb chronology and geochemical characteristics of Late Si-lurian monzogranite in Ongniud Bannar, Inner Mongolia[J]. Geological Bulletin of China, 2017, 36(8): 1359-1368.

Zircon U-Pb chronology and geochemical characteristics of Late Si-lurian monzogranite in Ongniud Bannar, Inner Mongolia

1.
Shenyang Center of China Geological Survey, Shenyang 110034, Liaoning, China
2.
Liaoning Institute of Geology and Mineral Resources, Shenyang 110029, Liaoning, China

More Information

Corresponding author: LIU Miao, 1171724956@qq.com

Received Date: 28 March 2017

Revised Date: 02 May 2017

Publish Date: 25 August 2017

Abstract

Abstract

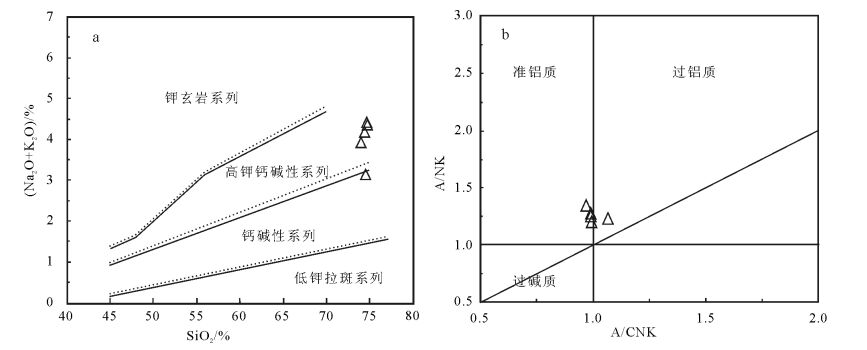

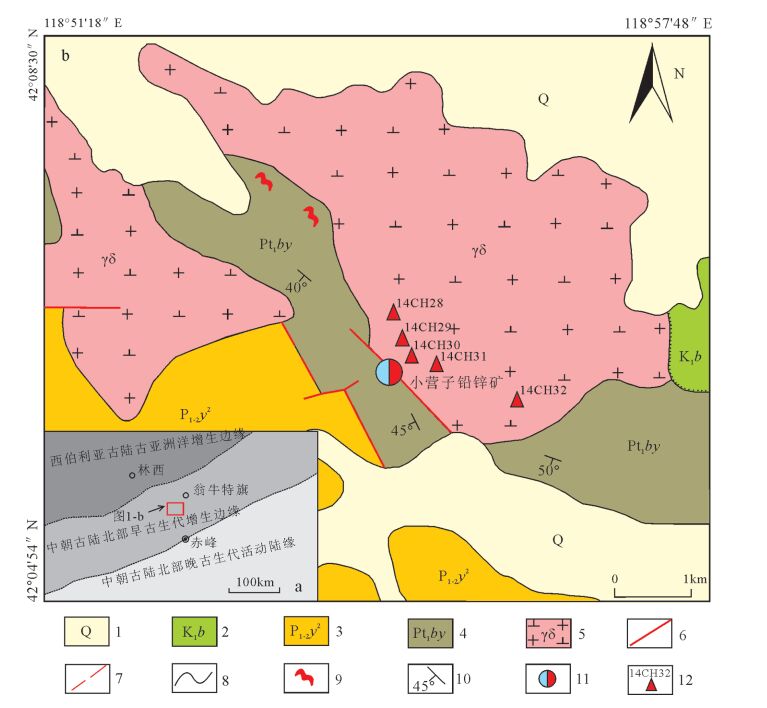

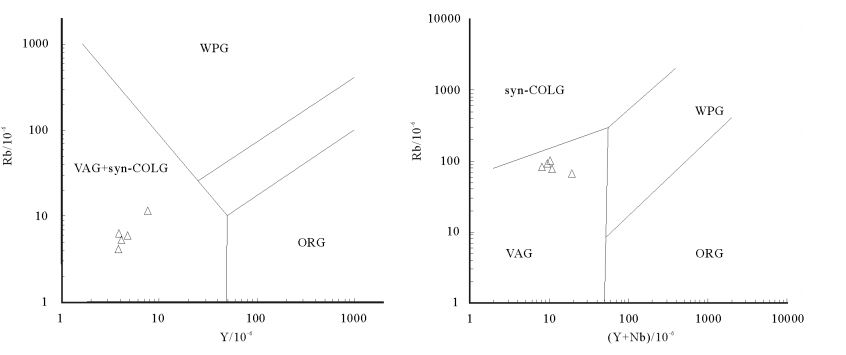

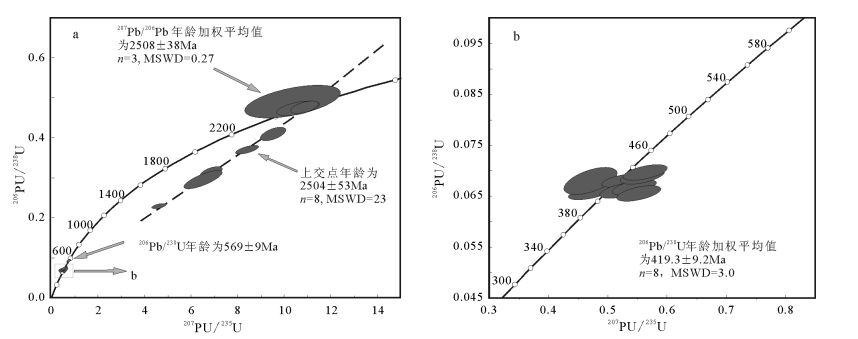

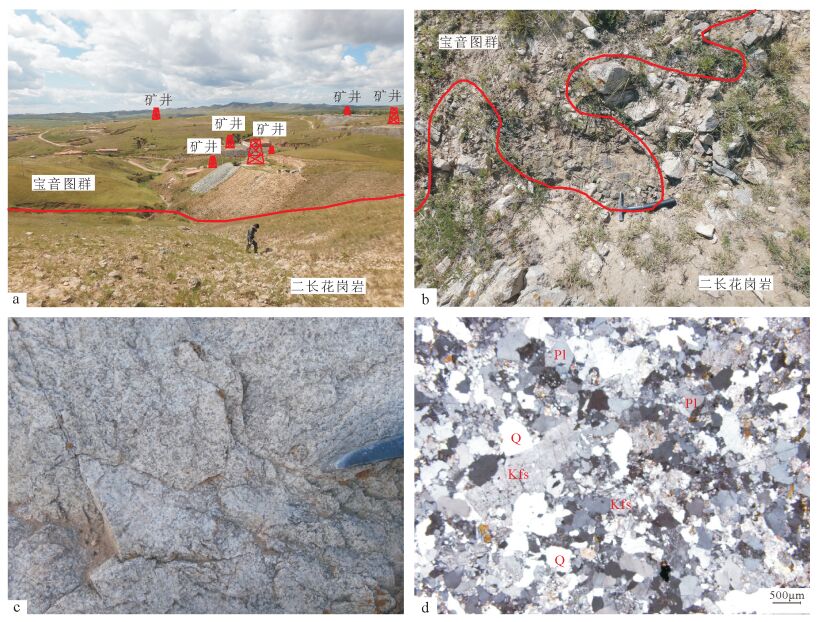

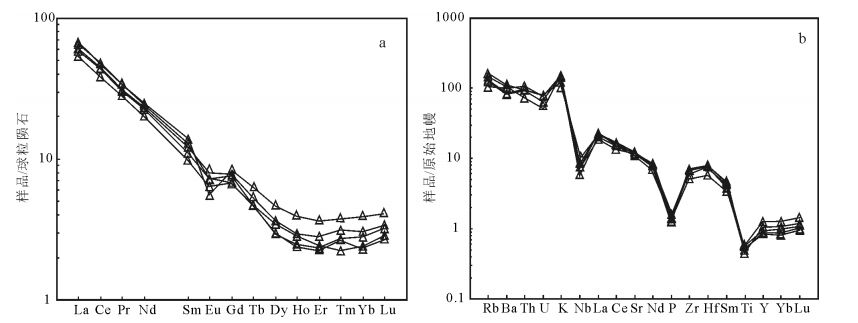

The granite widely distributed in the Xiaoyingzi lead-zinc ore deposit of Ongniud Bannar, Inner Mongolia, consists of monzogranite as revealed by field geological survey and thin section identification. Zircon LA-ICP-MS U-Pb dating result shows that the monzogranite was formed in late Silurian (419.3±9.2Ma) rather than in Mesozoic as previously held. The values of SiO₂, K₂O, K₂O/Na₂O, Al₂O₃ are 74.41%~75.05%, 3.05%~4.42%, 0.70~1.11, 13.22%~14.02% respectively, the aluminum saturation index-es (A/CNK) range from 0.99 to 1.1, and the oxides of Fe, Mg, Ti are relatively low, which implies that the monzogranite is Ⅰ-type granite. The ratios of light and heavy rare elements (LREE/HREE) are between 10.61 and 16.61, and the (La/Yb)_N ratios are be-tween 12.52 and 27.44, suggesting obvious fractionation between light and heavy rare elements. The values of δEu are 0.48~0.81 with moderate negative europium anomaly. It is enriched in large ion lithophile elements (LILEs) Rb, Ba, U, K, depleted relatively in high field strength elements (HFSEs) Nb, Zr, Hf, and depleted relatively in Sr, Yb. All these geochemical characteristics show that the monzogranite is a product of volcanic arc on an active continental margin. The regional geological data reveal that the monzogranite was formed in the process of extinction of Bainaimiao island arc in the setting of subduction of the Paleo Asian Ocean to the North China craton.
- Ongniud Bannar /
- monzogranite /
- zircon U-Pb dating /
- geochemical /
- Bainaimiao island arc

FullText(HTML)

References

[1]	赵耀娟, 凤金龙.内蒙古翁牛特旗铅锌多金属矿成矿地质条件及找矿前景[J].中国矿业, 2012, 21(9):72-75. Google Scholar
[2]	唐永章.内蒙古翁牛特旗硐子铅锌矿地质特征及矿床成因[J].内蒙古科技与经济, 2013, 276(2):45-51. Google Scholar
[3]	张喜周, 张振邦, 王学贞, 等.敖包山铅锌矿区地质特征及找矿方向探讨[J].矿产与地质, 2002, 16(5):277-280. Google Scholar
[4]	苏会平, 司国辉, 李得成.内蒙古赤峰市鸡冠山钼矿邻区成矿远景分析[J].长春理工大学学报, 2011, (3):199-200. Google Scholar
[5]	刘云明.刍议敖包山铅锌矿区地质特征及找矿标志[J].中国新技术新产品, 2012, (10):83-83. doi: 10.3969/j.issn.1673-9957.2012.10.076 CrossRef Google Scholar
[6]	解洪晶, 王玉往, 蒋炜, 等.内蒙古盛世莲花铅锌银矿床地质特征及成因初探[J].矿物学报, 2013, (s2):14-15. Google Scholar
[7]	蒋炜, 林龙军, 张云国, 等.内蒙古翁牛特旗长汉卜罗铅锌矿伴生银赋存状态研究[J].矿产与地质, 2015, 29(4):462-467. Google Scholar
[8]	张彦生.内蒙古赤峰市翁牛特旗硐子矿区铅锌矿矿体特征及找矿标志[J].内蒙古科技与经济, 2016, 354(8):54-55. Google Scholar
[9]	王春光, 孙丰月, 孙国胜, 等.内蒙古翁牛特旗荷尔勿苏铅锌矿床成矿流体性质与成因[J].世界地质, 2016, 35(2):450-457. Google Scholar
[10]	李怀渊, 张景训, 江民忠, 等.航空瞬变电磁法系统VTEMplus的应用效果[J].物探与化探, 2016, 40(2):360-364. Google Scholar
[11]	王春光. 内蒙古少郎河成矿带铅锌多金属矿床成矿作用研究[D]. 吉林大学博士学位论文, 2016.http://cdmd.cnki.com.cn/Article/CDMD-10183-1016079192.htm Google Scholar
[12]	内蒙古自治区地质矿产局.内蒙古自治区区域地质志[M].北京:地质出版社, 1987. Google Scholar
[13]	陈井胜, 李斌, 邢德和, 等.赤峰东部宝音图群斜长角闪岩锆石U-Pb年龄及地质意义[J].地质调查与研究, 2015, (2):81-88. Google Scholar
[14]	Wiedenbeck M, Alle P, Corfu F, et al. Three natural zircon stan-dards for U-Th-Pb, Lu-Hf, trace element and REE analyses[J]. Geostandards and Geoanalytical Research, 1995, 19(1):1-23. doi: 10.1111/ggr.1995.19.issue-1 CrossRef Google Scholar
[15]	Anderson T. Correction of Common Lead in U-Pb Analysis That Do Not Report ²⁰⁴Pb[J]. Chem. Geol., 2002, 192:59-79. doi: 10.1016/S0009-2541(02)00195-X CrossRef Google Scholar
[16]	Ludwig K. R. Isoplot/Ex version 3. 00:a geochronology toolkit for microsoft excel[J]. Berkeley Geochronology Center Special Pub-lication, California, Berkeley, 2003, 4:1-70. Google Scholar
[17]	Belousova E A, Griffin W L O, Reilly S Y, et al. Igneous Zir-con:Trace Element Composition as an Indicator of Source Rock Type[J]. Contrib. Mineral. Petrol., 2002, 143:602-622. doi: 10.1007/s00410-002-0364-7 CrossRef Google Scholar
[18]	Hoskin P W O. Rare Earth Element Chemistry of Zircon and Its Use as a Provenance Indicator[J]. Geology, 2001, 28(7):627-630. Google Scholar
[19]	李长民.锆石成因矿物学与锆石微区定年综述[J].地质调查与研究, 2009, 33(3):161-174. Google Scholar
[20]	钟玉芳, 马昌前, 佘振兵.锆石地球化学特征及地质应用研究综述[J].地质科技情报, 2006, 25(1):27-35. Google Scholar
[21]	Liu D Y, Wilde S A, Wan Y S, et al. Combined U-Pb, hafnium and oxygen isotope analysis of zircons from meta-igneous rocks in the southern North China Craton reveal multiple events in the Late Mesoarchean-Early Neoarchean[J]. Chemical Geology, 2009, 261:139-153. Google Scholar
[22]	刘福来, 薛怀民, 刘平华.苏鲁超高压岩石部分熔融时间的准确限定:来自含黑云母花岗岩中锆石U-Pb定年、REE和Lu-Hf同位素的证据[J].岩石学报, 2009, 25(5):1039-1055. Google Scholar
[23]	Chen B, Jahn B M, Wilde S, et al. Two contrasting Paleozoic mag-matic belts in northern Inner Mongolia, China:Petrogenesis and tectonic implications[J]. Tectonophysics, 2000, 328:157-182. doi: 10.1016/S0040-1951(00)00182-7 CrossRef Google Scholar
[24]	刘敦一, 简平, 张旗, 等.内蒙古图林凯蛇绿岩中埃达克岩SHRIMP测年:早古生代洋壳消减的证据[J].地质学报, 2003, 77:318-327. doi: 10.3969/j.issn.1004-9665.2003.03.017 CrossRef Google Scholar
[25]	石玉若, 刘敦一, 张旗, 等.内蒙古苏左旗地区闪长-花岗岩类SHRIMP年代学[J].地质学报, 2004, 78:789-799. doi: 10.3321/j.issn:0001-5717.2004.06.009 CrossRef Google Scholar
[26]	Miao L C, Zhang F Q, Fan W M, et al. Phanerozoic evolution of the Inner Mongolia-Daxinganling orogenic belt in North China:Constraints from geochronology of ophiolites and associated forma-tions[C]//Zhai M G, Windley B F, Kusky T M, et al. Mesozoic Sub-Continental Lithospheric Thinning under Eastern Asia. Geo-logical Society, London, Special publications, 2007, 280:223-237. Google Scholar
[27]	Jian P, Liu D Y, Kroner A, et al. Time scale of an Early to MidPaleozoic orogenic cycle of the long-lived Central Asian Orogen-ic belt, Inner Mongolia of China:Implications for continental growth[J]. Lithos, 2008, 101:233-259. doi: 10.1016/j.lithos.2007.07.005 CrossRef Google Scholar
[28]	陈衍景, 翟明国, 蒋少涌.华北大陆边缘造山过程与成矿研究的重要进展和问题[J].岩石学报, 2009, 25:2695-2726. Google Scholar
[29]	Zhang X H, Wilde S A, Zhang H F, et al. Geochemistry of horn-blende gabbros from Sonidzuoqi, Inner Mongolia, North China:Implication for magmatism during the final stage of suprasubduc-tion zone ophiolite formation[J]. International Geology Review, 2009, 51:345-373. doi: 10.1080/00206810802712103 CrossRef Google Scholar
[30]	冯晓曦, 姚书振, 王家松, 等.内蒙古白乃庙铜钼矿区侵入岩LAMC-ICP-MS锆石U-Pb定年及地质意义[J].地质与勘探, 2014, 50(2):369-381. Google Scholar
[31]	李俊建, 党智财, 赵泽霖, 等.内蒙古白乃庙铜矿床成矿时代的研究[J].地质学报, 2015, 89(8):1448-1457. Google Scholar
[32]	赵利刚, 李承东, 常青松, 等.内蒙古白乃庙铜矿区含矿中酸性侵入岩LA-ICP-MS锆石U-Pb年龄、地球化学特征及成矿时代[J].地质通报, 2016, 35(4):542-552. Google Scholar
[33]	Baarbarin B A. Review of the relationships between granitoid types, their origins and their geodynamic environments[J]. Lithos, 1999, 46(3):605-626. doi: 10.1016/S0024-4937(98)00085-1 CrossRef Google Scholar
[34]	Defant M J, Drummond M S. Derivation of some modern magmas by melting of young subduction lithosphere[J]. Nature, 1990, 347:662-665. doi: 10.1038/347662a0 CrossRef Google Scholar
[35]	Martin H, Smithies R H, Rapp R, et al. An overview of adakite to-nalite-trondhjemite-granodiorite(TTG), and sanukitoid:relation-ships and some implieations for crustal evolution[J]. Lithos, 2005, 79:1-4. doi: 10.1016/j.lithos.2004.04.048 CrossRef Google Scholar
[36]	Rapp P R, Shimizu N, Norman M D. Growth of early continental crust by partial melting of eclogite[J]. Nature, 2003, 425:605-609. doi: 10.1038/nature02031 CrossRef Google Scholar
[37]	HollocherB J, Robinson P. Geochemistry of the metamorphosed Ordovician Taconian Magmatic Arc, Bronson Hill anticlinorium, western New England[J]. Physics and Chemistry of the Earth, 2002, 27:5-45. doi: 10.1016/S1474-7065(01)00002-X CrossRef Google Scholar
[38]	张旗, 王焰, 李承东, 等.花岗岩的Sr-Yb分类及其地质意义[J].岩石学报, 2006, 22(9):2249-2269. Google Scholar
[39]	张旗, 王元龙, 金惟俊, 等.晚中生代的中国东部高原:证据、问题和启示[J].地质通报, 2008, 27(9):1404-1430. Google Scholar
[40]	张维, 简平.内蒙古达茂旗北部早古生代花岗岩类SHRIMP U-Pb年代学[J].地质学报, 2008, 82(6):778-787. Google Scholar
[41]	Guo F, Fan W, Li C, Miao L, et al. Early Paleozoic subduction of the Paleo-Asian Ocean:Geochronological and geochemical evi-dence from the Dashizhai basalts, Inner Mongolia[J]. Science in China, 2009, 52:940-951. doi: 10.1007/s11430-009-0083-2 CrossRef Google Scholar
[42]	刘建峰, 李锦轶, 迟效国, 等.华北克拉通北缘与弧-陆碰撞相关的早泥盆世长英质火山岩[J].地质通报, 2013, 32(2/3):267-278. Google Scholar
[43]	张拴宏, 赵越, 刘建民, 等.华北地块北缘晚古生代-早中生代岩浆活动期次、特征及构造背景[J].岩石矿物学杂志, 2010, 29(6):824-842. Google Scholar
[44]	罗镇宽, 苗来成, 关康, 等.河北张家口水泉沟岩体SHRIMP年代学研究及其意义[J].地球化学, 2001, 30(2):116-122. Google Scholar
[45]	Jiang N. Petrology and geochemistry of the Shuiquangou syenitic complex, northern margin of the North China Craton[J]. Journal of the Geological Society, 2005, 162(1):203-215. doi: 10.1144/0016-764903-144 CrossRef Google Scholar
[46]	Zhang S H, Zhao Y, Liu X C, et al. Late Paleozoic to Early Meso-zoic mafic-ultramafic complexes from the northern North China Block:Constraints on the composition and evolution of the litho-spheric mantle[J]. Lithos, 2009, 110:229-246. doi: 10.1016/j.lithos.2009.01.008 CrossRef Google Scholar
[47]	Shi Y R, Liu D Y, Miao L C, et al. Devonian A-type granitic magmatism on the northern margin of the North China Craton:SHRIMP U-Pb zircon dating and Hf-isotopes of the Hongshan granite at Chifeng, Inner Mongolia, China[J]. Gondwana Research, 2010, 17:632-641. doi: 10.1016/j.gr.2009.11.011 CrossRef Google Scholar
①	内蒙古1: 25万赤峰市幅区域地质调查修测项目. 吉林大学, 2012. Google Scholar
