The relationship between Hainan Island and Yangtze and Cathaysia Block: Evidence from the U-Pb age of detrital zircons of the Lower Permian Echa Formation in Hainan Island

ZHANG Zongyan; KE Xue; BU Jianjun; ZHOU Jinbo; HE Weihong

2019 Vol. 38, No. 9

Article Contents

Article navigation > Geological Bulletin of China > 2019 > 38(9): 1521-1528

Next Article Previous Article

ZHANG Zongyan, KE Xue, BU Jianjun, ZHOU Jinbo, HE Weihong. The relationship between Hainan Island and Yangtze and Cathaysia Block: Evidence from the U-Pb age of detrital zircons of the Lower Permian Echa Formation in Hainan Island[J]. Geological Bulletin of China, 2019, 38(9): 1521-1528.

Citation:

ZHANG Zongyan, KE Xue, BU Jianjun, ZHOU Jinbo, HE Weihong. The relationship between Hainan Island and Yangtze and Cathaysia Block: Evidence from the U-Pb age of detrital zircons of the Lower Permian Echa Formation in Hainan Island[J]. Geological Bulletin of China, 2019, 38(9): 1521-1528.

The relationship between Hainan Island and Yangtze and Cathaysia Block: Evidence from the U-Pb age of detrital zircons of the Lower Permian Echa Formation in Hainan Island

1.
Wuhan Center, China Geological Survey, Wuhan 430205, Hubei, China
2.
Institute of Geological Survey, China University of Geosciences, Wuhan 430074, Hubei, China
3.
Hainan Geological Survey, Haikou 570206, Hainan, China
4.
School of Earth Sciences, China University of Geosciences, Wuhan 430074, Hubei, China

More Information

Corresponding author: HE Weihong, whzhang@cug.edu.cn

Received Date: 10 April 2018

Revised Date: 20 August 2018

Publish Date: 15 September 2019

Abstract

Abstract

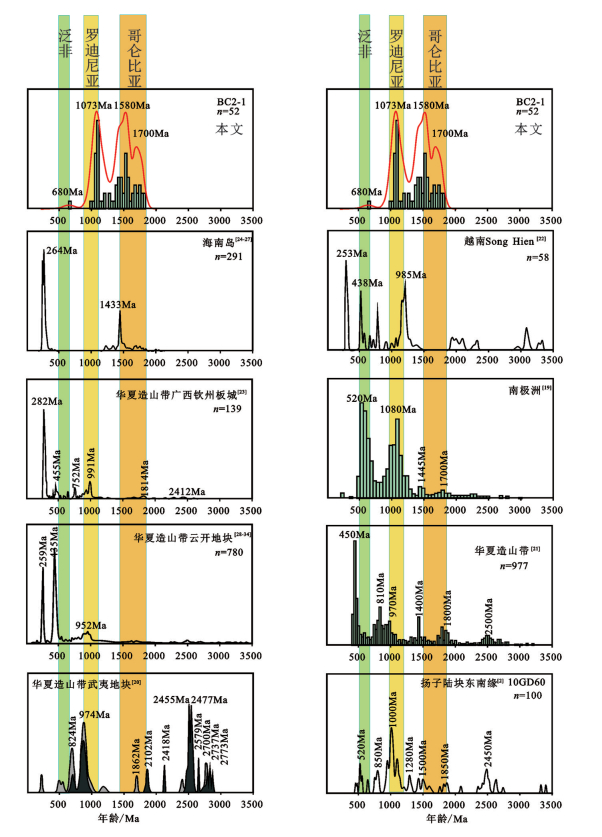

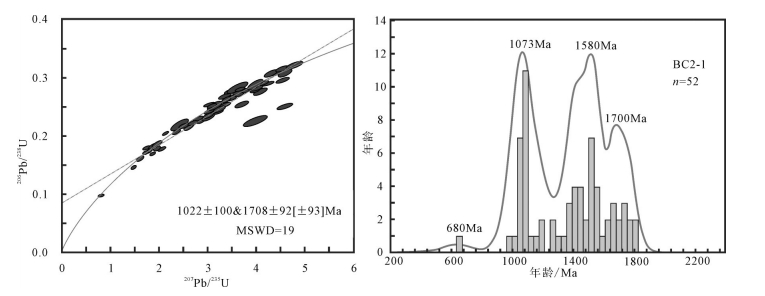

The relationship of Hainan Island with Yangtze and Cathaysia Block has been of considerable controversy. This paper presents a study of geochronology of detrital zircon from the Echa Formation, Baicha Village, Dongfang City, Hainan Island. The results show 4 major age peaks, i.e., ~1700Ma, ~1580Ma, 1073Ma and 680Ma, recording the events of Columbia (1700Ma and 1580 Ma), Rodinia (1073Ma) and Pan-African (680Ma). The presence of ~1700Ma, ~1580Ma and 1073Ma age peaks is similar to that of Antarctica, Song Hien in Vietnam, Cathaysia orogenic belt and southeast margin of Yangtze Block, revealing that they all experienced the Columbia and Grenville (Rodinia) orogenic activities. The ~1700Ma and ~1580Ma age peaks only appear on the southeast margin of Yangtze Block, but have not been reported inside the Yangtze Block. The 680 Ma age peak appears in the Hainan Island but not in the Yangtze Block, indicating that the Hainan Island was separated or far away from the Yangtze Block, but was adjacent to Cathaysia Block, Vietnam and Antarctica during the Meso-to Neoproterzoic period.
- detrital zircon /
- U-Pb age /
- Lower Permian /
- Hainan Island /
- Cathaysia Block /
- Yangtze Block

FullText(HTML)

References

[1]	Yao W H, Li Z X, Li W X, et al. From Rodinia to Gondwanaland:A Tale of detrital zircon provenance analyses from the southern Nanhua Basin, South China[J]. American Journal of Science, 2014, 314:278-313. doi: 10.2475/01.2014.08 CrossRef Google Scholar
[2]	Yao W H, Li Z X, Li W X, et al.. Detrial provence evolution of the Ediacaran-Silurian Nanhua foreland basin, South China[J]. Gondwana Research, 2015, 28:1449-1465. doi: 10.1016/j.gr.2014.10.018 CrossRef Google Scholar
[3]	Zhang C L, Santosh M, Zhu Q B, et al. The Gondwana connection of South China:Evidence From monazite and zircon geochronology in the Cathaysia Block[J]. Gondwana Research, 2015, 28:1137-1151. doi: 10.1016/j.gr.2014.09.007 CrossRef Google Scholar
[4]	张克信, 骆满生, 徐亚东, 等.中国沉积大地构造图(1:2500000)说明书[M].北京:地质出版社, 2015:1-127. Google Scholar
[5]	张克信, 何卫红, 徐亚东, 等.中国洋板块地层分布及构造演化[J].地学前缘, 2016, 23(6):24-30. Google Scholar
[6]	潘桂棠, 陆松年, 肖庆辉, 等.中国大地构造阶段划分与演化[J].地学前缘, 2016, 23(6):1-23. Google Scholar
[7]	Li Y C, Zhang K X, He W H, et al.. Division of tectonic-strata superregions in China[J]. China Geology, 2018, 2:236-256. Google Scholar
[8]	Lin S F, Xing G F, Davis D W, et al. Appalachian-style multi-terrane Wilson cycle model for the assembly of South China[J]. Geology, 2018, 46:319-322. doi: 10.1130/G39806.1 CrossRef Google Scholar
[9]	殷鸿福, 吴顺宝, 杜远生, 彭元桥.华南是特提斯多岛洋体系的一部分[J].地球科学, 1999, 246(1):1-12. Google Scholar
[10]	马大铨, 黄香定, 肖志发, 等.海南岛结晶基底-抱板群层序与时代[M].武汉:中国地质大学出版社, 1997. Google Scholar
[11]	李孙雄, 云平, 林义华, 等.海南省区域地质志[M].北京:地质出版社, 2017. Google Scholar
[12]	陆松年, 郝国杰, 王惠初, 等.中国变质岩大地构造图(1:2500000)说明书[M].北京:地质出版社, 2015. Google Scholar
[13]	汪啸风, 马大铨, 蒋大海, 等.海南岛地质(一)地层古生物[M].北京:地质出版社, 1992. Google Scholar
[14]	何卫红, 唐婷婷, 乐明亮, 等.华南南华纪-二叠纪沉积大地构造演化[J].地球科学, 2014, 39(8):929-953. Google Scholar
[15]	Liu Y S, Hu Z C, Gao S, et al. In situ analysis of major and trace elements of anhydrous minerals by LA-ICP-MS without applying an internal standard[J]. Chemical Geology, 2008, 257(1/2):34-43. Google Scholar
[16]	Liu Y S, Gao S, Hu Z C, et al. Continental and oceanic crust recycling-induced melt-peridotite interactions in the TransNorth China Orogen:U-Pb dating, Hf isotopes and trace elements in zircons of mantle xenoliths[J]. Journal of Petrology, 2010, 51(1&2):537-571. Google Scholar
[17]	Liu Y S, Hu Z C, Zong K Q, et al. Reappraisement and refinement of zircon U-Pb isotope and trace element analyses by LA-ICP-MS[J]. Chinese Science Bulletin, 2010, 55(15):1535-1546. doi: 10.1007/s11434-010-3052-4 CrossRef Google Scholar
[18]	Ludwig K R. ISOPLOT 3.00: A Geochronological Toolkit for Microsoft Excel[M]. Berkeley Geochronology Center, California, Berkeley, 2003: 39. Google Scholar
[19]	Paulsen T, Deering C, Sliwinski J, et al. Evindence for a spike in mantle carbon outgassing during the Ediacaran peried[J]. Nature Geoscience, 2017, 10:930-934. doi: 10.1038/s41561-017-0011-6 CrossRef Google Scholar
[20]	Li Z X, Li X H, Wartho J A, et al. Magmatic and metamorphic events during the early Paleozoic Wuyi-Yunkai orogeny, southeastern South China:New age constraints and pressuretemprerature conditions[J]. GSA Bulletin, 2010, 122:772-793. doi: 10.1130/B30021.1 CrossRef Google Scholar
[21]	Wan Y S, Liu D Y, Wilde S. A., et al. Evolution of the Yunkai Terrance, South China:Evidence from SHRIMP zircon U-Pb dating, geochemistry and Nd isotope[J]. Journal of Asian Earth Sciences, 2010, 37:140-153. doi: 10.1016/j.jseaes.2009.08.002 CrossRef Google Scholar
[22]	Halpin J A., Tran H T, Lai C K, et al. U-Pb zircon geochronology and geochemistry from NE Vietnam:A 'tectonically disputed' territory between the Incochina and South China blocks[J]. Gondwana Research, 2016, 34:254-273. Google Scholar
[23]	Ke X, Zhang Z Y, Yang J H, et al. Radiolarian and detrital zircon in the Upper Carboniferous to Permian Bancheng Formation, Qinfang Basin, and the geological significance[J]. Journal of Earth Sciene, 2019(in press). Google Scholar
[24]	Chen C H, Hsieh P S, Lee C Y, et al. Two episodes of the Indosinian thermal event on the South China Block:Constraints from LA-ICP-MS U-Pb zircon and electron microprobe monazite ages of the Darongshan S-type granitic suite[J]. Gondwana Research, 2011, 19:1008-1023. doi: 10.1016/j.gr.2010.10.009 CrossRef Google Scholar
[25]	Li Z X, Li X H, Zhou H W, et al. Grenvillian continental collision in south China:New SHRIMP U-Pb zircon results and implications for the configuration of Rodinia[J]. Geology, 2002, 30(2):163-166. Google Scholar
[26]	Li X H, Li Z X, Li W X, et al. Initiation of the Indosinian Orogeny in South China:Evidence for a Permian Magmatic Arc on Hainan Island[J]. The Journal of Geology, 2006, 114:341-353. doi: 10.1086/501222 CrossRef Google Scholar
[27]	Li Z X, Li X H, Li W X, et al. Was Cathaysia part of Proterozoic Laurentia?-new data from Hainan Island, South China[J]. Terra Nova, 2008, 20:154-164. doi: 10.1111/j.1365-3121.2008.00802.x CrossRef Google Scholar
[28]	Yu J H, O'Reilly, Wang S Y, et al. Components and episodic growth of Precambrian crust in the Cathaysia Block, South China:Evidence from U-Pb ages and Hf isotopes of zircons in Neoproterozoic sediments[J]. Precambrian Research, 2010, 181:97-114. doi: 10.1016/j.precamres.2010.05.016 CrossRef Google Scholar
[29]	Wang Y J, Wu C M, Zhang A M, et al. Kwangsian and Indosinian reworking of the eastern South China Block:Constraints on zircon U-Pb geochronology and metamorphism of amphibolites and granulites[J]. Lithos, 2011, 127:239-260. doi: 10.1016/j.lithos.2011.07.027 CrossRef Google Scholar
[30]	彭松柏, 金振民, 刘云华, 等.云开造山带强过铝深熔花岗岩地球化学、年代学及构造背景[J].地球科学, 2006, 1:110-120. doi: 10.3321/j.issn:1000-2383.2006.01.014 CrossRef Google Scholar
[31]	覃小锋, 潘元明, 李江, 等.桂东南云开地区变质杂砂锆石SHRIMP U-Pb年代学[J].地质通报, 2006, 25(5):553-559. doi: 10.3969/j.issn.1671-2552.2006.05.004 CrossRef Google Scholar
[32]	Zhang A M, Wang Y J, Fan W M, et al. Earliest Neoproterozoic (ca. 1.0 Ga) arc-back-arc-basin nature along the northern Yunkai Domain of the Cathaysia Block:geochronological and geochemical evidence from the metabasite[J]. Precambrian Research, 2012, 220/221:217-233. doi: 10.1016/j.precamres.2012.08.003 CrossRef Google Scholar
[33]	Zhao L, Guo F, Fan W M, et al. Crustal evolution of the Shiwandashan area in South China:Zircon U-Pb-Hf isotopic records from granulite enclaves in Indo-Sinian granites[J]. Chinese Science Bulletin, 2010, 55(19):2028-2038. doi: 10.1007/s11434-010-3225-1 CrossRef Google Scholar
[34]	Chen C H, Liu Y H, Lee C Y, et al. Geochronology of granulite, charnockite and gensis in the poly-metamorphosed Gaozhou Complex (Yunkai Massif), South China:Emphasis on the in-situ EMP monazite dating[J]. Lithos, 2012, 106:83-92. Google Scholar
[35]	张志存.海南岛西部蜓类再研究[J].微体古生物学报, 1992, 9(2):151-164. Google Scholar
[36]	方宗杰, 殷德伟.海南岛东方早二叠世双壳类动物群及其古生物地理学研究——兼评南龙杂砾岩的冰川成因说[J].古生物学报, 1996, 34(3):301-315. Google Scholar
[37]	李国胜.石炭纪二叠纪的海南岛何在?[J].南海地质研究, 1995, (七):69-79 Google Scholar
[38]	马力, 陈焕疆, 甘克文, 等.中国南方大地构造和海相油气地质(上)[M].北京:地质出版社, 2005:1-451. Google Scholar
