Yang Hui. Influence of Mineral Powder and Fiber on Work and Mechanical Properties of Reactive Powder Concrete[J]. Multipurpose Utilization of Mineral Resources, 2023, 44(2): 197-204. doi: 10.3969/j.issn.1000-6532.2023.02.030
|
Influence of Mineral Powder and Fiber on Work and Mechanical Properties of Reactive Powder Concrete
-
Abstract
To study the basic characteristics of silica fume and iron tailings modified concrete, silica fume and iron tailings powder were used to replace cement and river sand at a ratio of 0% to 20%. The optimal replacement ratio of silica fume and iron tailings powder was obtained through mechanical and chloride ion erosion tests; then, on this basis, steel fiber, basalt fiber and sisal fiber were added in a volume ratio of 0~2% to improve the mechanical properties of concrete. The results showed that: the compressive strength and tensile strength of concrete increase first and then decrease with the increase of silica fume and iron tailing powder. The optimal replacement ratios of silica fume and iron tailing powder are 15% and 10%, respectively. Three kinds of fibers can effectively increase the compressive strength and tensile strength of concrete, but reduce the slump of concrete. The addition of 5% silica fume and 10% iron tailings powder can improve the corrosion resistance of concrete, but too much iron tailings powder is detrimental to the corrosion resistance of concrete; basalt fiber is better than steel fiber and sisal fiber in improving the chloride ion resistance of concrete; SEM analysis also obtained the same conclusion.
-
Keywords:
- Concrete /
- Silica fume /
- Iron tailings powder /
- Chloride ion attack /
- Fiber /
- SEM
-
-
References
[1] 张玉琢, 周梅, 刘凯. 铁尾矿砂用于混凝土细集料的实验研究[J]. 非金属矿, 2016, 39(6):57-59+66. ZHANG Y Z, ZHOU M, LIU K. Experimental study on the use of iron tailings as fine aggregate for concrete[J]. Non-metallic Minerals, 2016, 39(6):57-59+66. doi: 10.3969/j.issn.1000-8098.2016.06.018 [2] 陶华强, 伍彦廷, 陈奕秋, 等. 铁尾矿砂水泥复合土的力学性能研究[J]. 工程技术研究, 2021, 6(3):118-120. TAO H Q, WU Y T, CHEN Y Q, et al. Study on mechanical properties of iron tailings sand cement composite soil[J]. Engineering Technology Research, 2021, 6(3):118-120. doi: 10.3969/j.issn.1671-3818.2021.03.051 [3] 张信龙, 顾晓薇, 刘庆东, 等. 冻融-酸雨耦合作用对铁尾矿砂混凝土耐久性的影响[J]. 混凝土, 2021(1):107-109+114. ZHANG X L, GU X W, LIU Q D, et al. Effect of freeze-thaw and acid rain coupling on the durability of iron tailings concrete[J]. Concrete, 2021(1):107-109+114. doi: 10.3969/j.issn.1002-3550.2021.01.026 [4] 黄钟晖, 张世荣, 王炳华, 等. 高性能铁尾矿细骨料再生混凝土碳化力学性能实验研究[J]. 水利与建筑工程学报, 2021, 19(1):28-33. HUANG Z H, ZHANG S R, WANG B H, et al. Experimental study on carbonation mechanical properties of recycled concrete with high performance iron tailings fine aggregate[J]. Journal of Water Conservancy and Construction Engineering, 2021, 19(1):28-33. doi: 10.3969/j.issn.1672-1144.2021.01.005 [5] 卢佳涛, 孔丽娟, 樊子瑞, 等. 铁尾矿砂-地聚物复合材料界面与性能研究[J/OL]. 建筑材料学报: 1-11[2021-07-28]. http://kns.cnki.net/kcms/detail/31.1764.TU.20210616.1527.002.html. LU J T, KONG L J, FAN Z R, et al. Study on the interface and properties of iron tailings sand-geopolymer composite [J/OL]. Journal of Building Materials: 1-11 [2021-07-28]http://kns.cnki.net/kcms/detail/31.1764.TU.20210616.1527.002.html. [6] 张肖艳, 宋强, 李辉, 等. 铁尾矿粉对C40混凝土性能的影响[J]. 硅酸盐通报, 2013, 32(12):2559-2563. ZHANG X Y, SONG Q, LI H, et al. Effect of iron tailings powder on the performance of C40 concrete[J]. Silicate Bulletin, 2013, 32(12):2559-2563. doi: 10.16552/j.cnki.issn1001-1625.2013.12.022 [7] 宋少民, 陈泓燕. 铁尾矿微粉对低熟料胶凝材料混凝土性能的影响研究[J]. 硅酸盐通报, 2020, 39(8):2557-2566. SONG S M, CHEN H Y. Study on the influence of iron tailings fines on the performance of low clinker cementitious material concrete[J]. Silicate Bulletin, 2020, 39(8):2557-2566. doi: 10.16552/j.cnki.issn1001-1625.2020.08.026 [8] Huang X, Ranade R, Li V C. Feasibility study of developing green ECC using iron ore tailings powder as cement replacement[J]. Journal of Materials in Civil Engineering, 2013, 25(7):923-931. doi: 10.1061/(ASCE)MT.1943-5533.0000674 [9] 李华伟, 王荣, 林进益, 等. 电石渣激发超细化铁尾矿水泥胶砂的力学与耐久性能研究[J]. 矿业研究与开发, 2021, 41(1):64-68. LI H W, WANG R, LIN J Y, et al. Study on the mechanics and durability of ultra-fine iron tailings cement mortar excited by carbide slag[J]. Mining Research and Development, 2021, 41(1):64-68. doi: 10.13827/j.cnki.kyyk.2021.01.013 [10] 张彬, 宫照伟. 铁尾矿粉改良水泥土的强度与动力特性实验研究[J]. 硅酸盐通报, 2017, 36(11):3607-3612. ZHANG B, GONG Z W. Experimental study on strength and dynamic characteristics of cement soil improved by iron tailings powder[J]. Portland Bulletin, 2017, 36(11):3607-3612. -
Access History
Figures(13)
Tables(3)
Export File
Citation
Yang Hui. Influence of Mineral Powder and Fiber on Work and Mechanical Properties of Reactive Powder Concrete[J]. Multipurpose Utilization of Mineral Resources, 2023, 44(2): 197-204. doi: 10.3969/j.issn.1000-6532.2023.02.030
Format
Content
DownLoad:
-

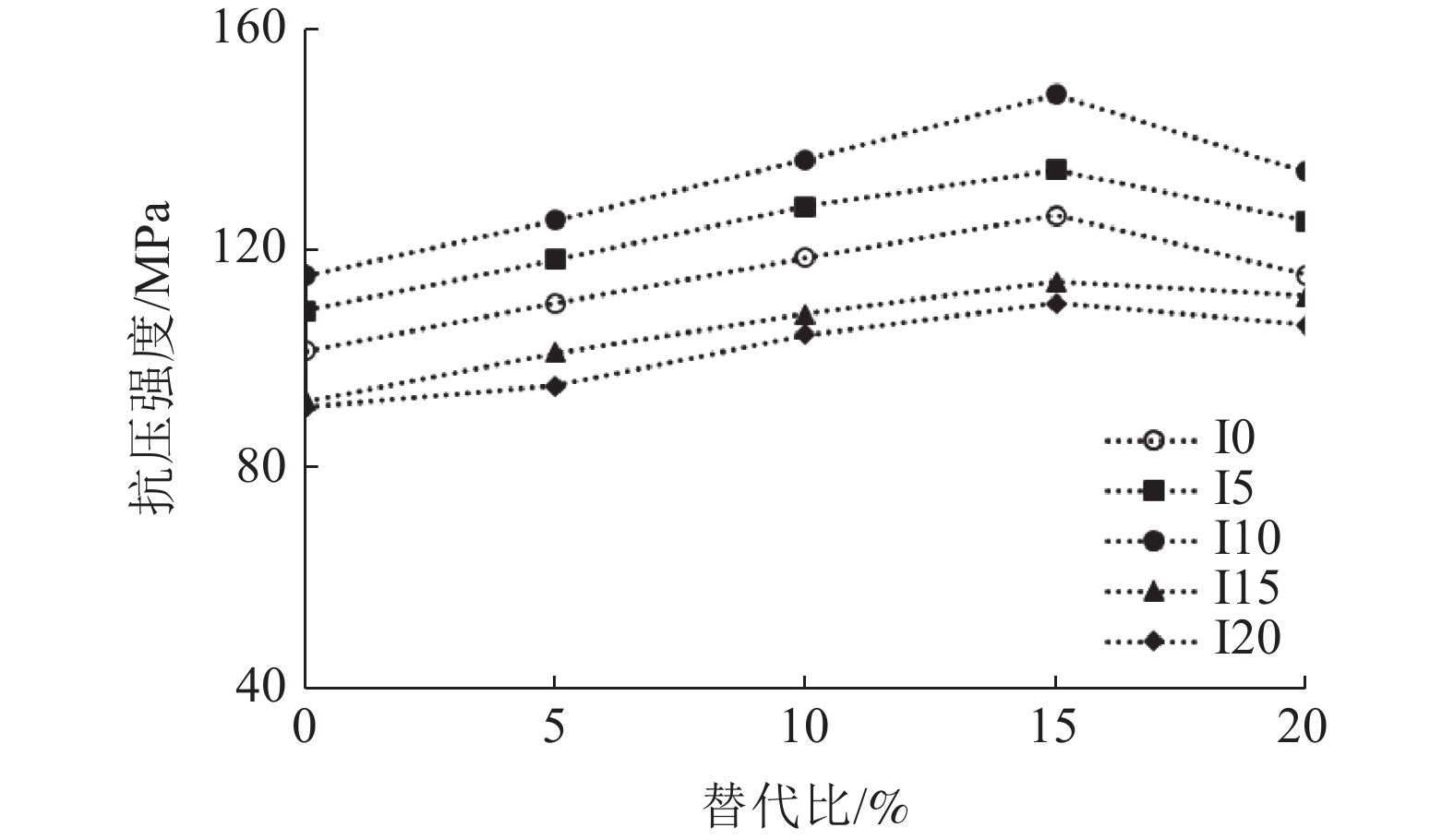

Figure 1.
Effect of silicon powder substitution ratio on compressive strength of concrete
-

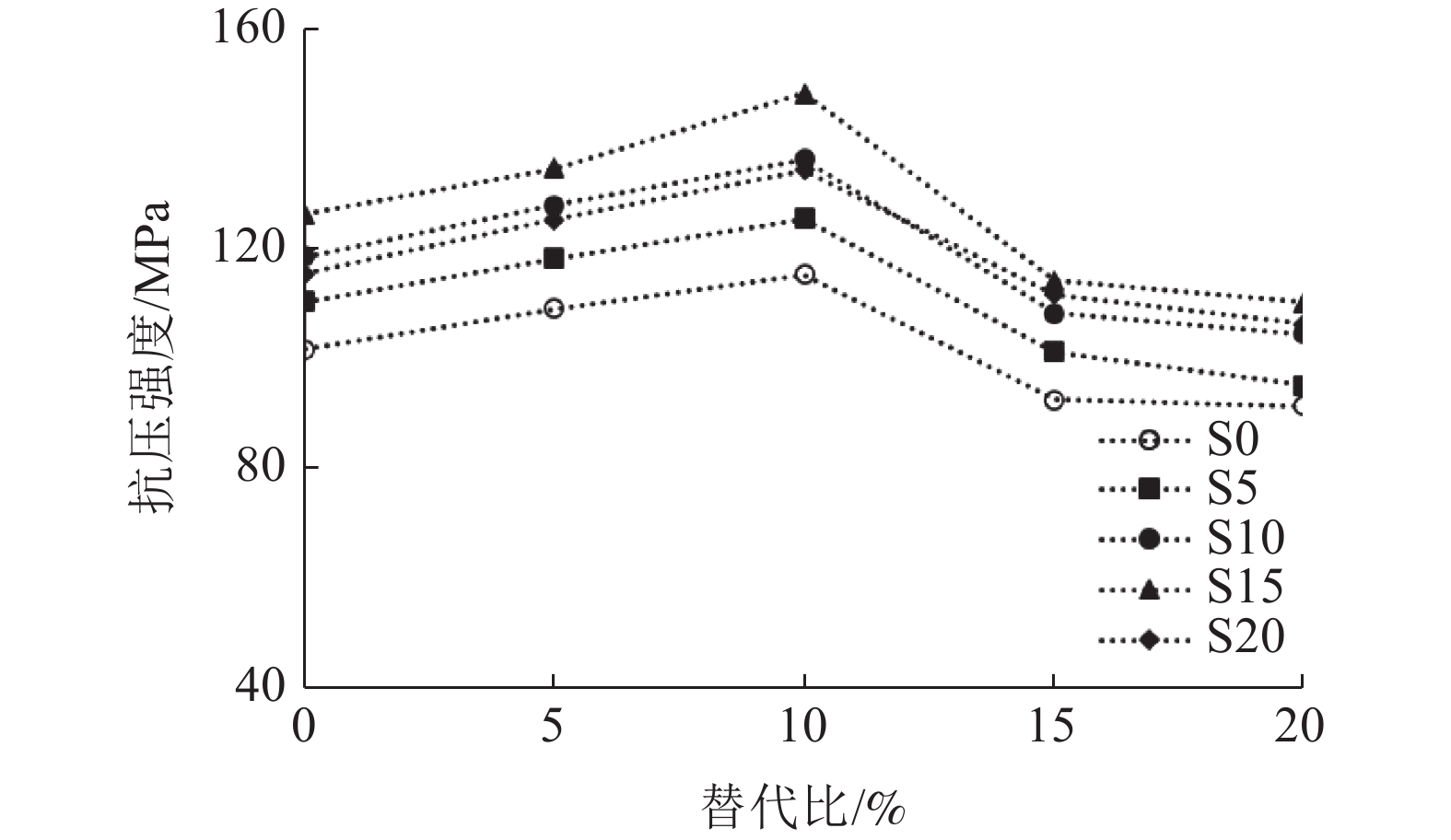

Figure 2.
Effect of iron tailings powder substitution ratio on compressive strength of concrete
-

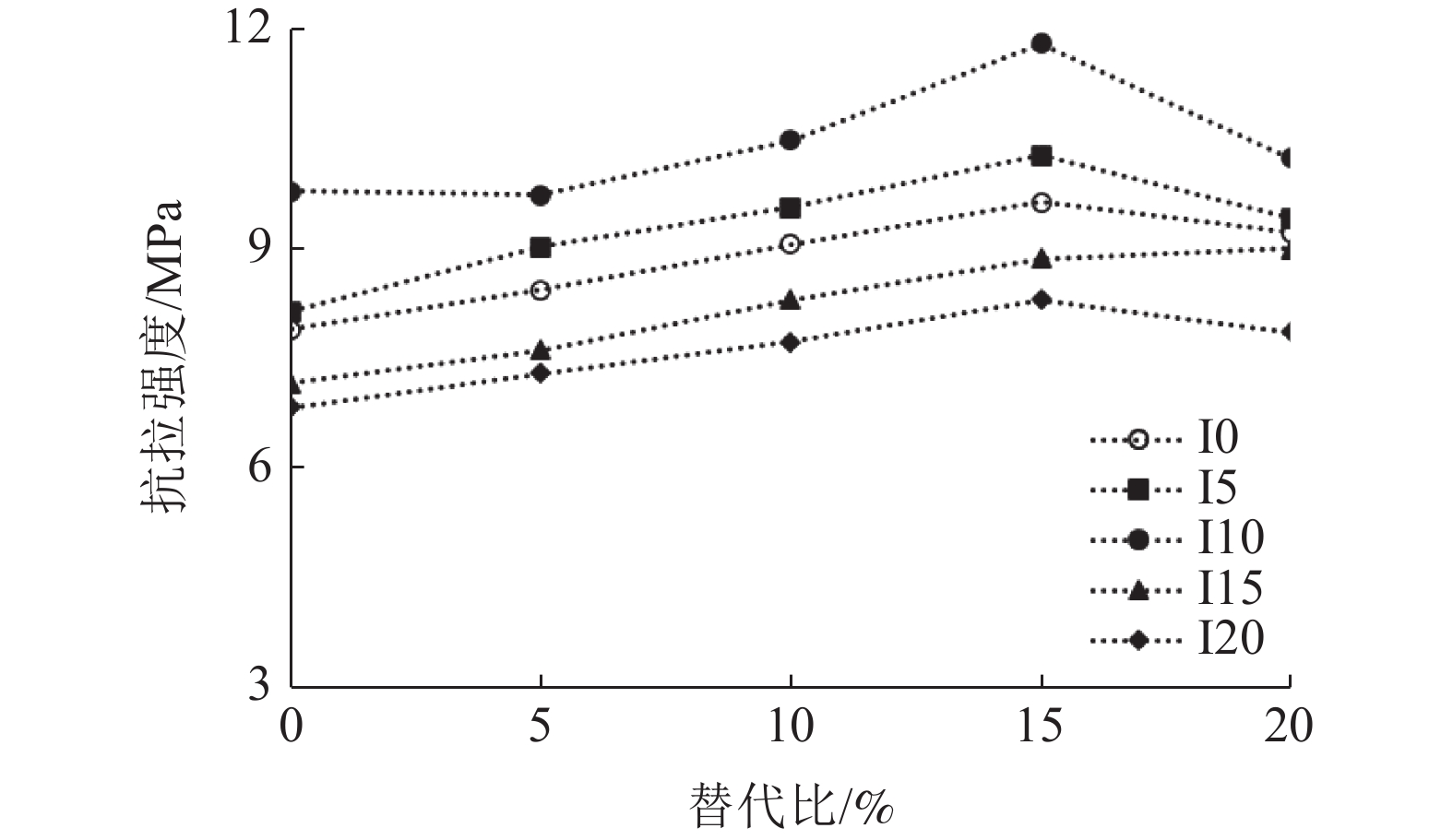

Figure 3.
Effect of silicon powder substitution ratio on tensile strength of concrete
-

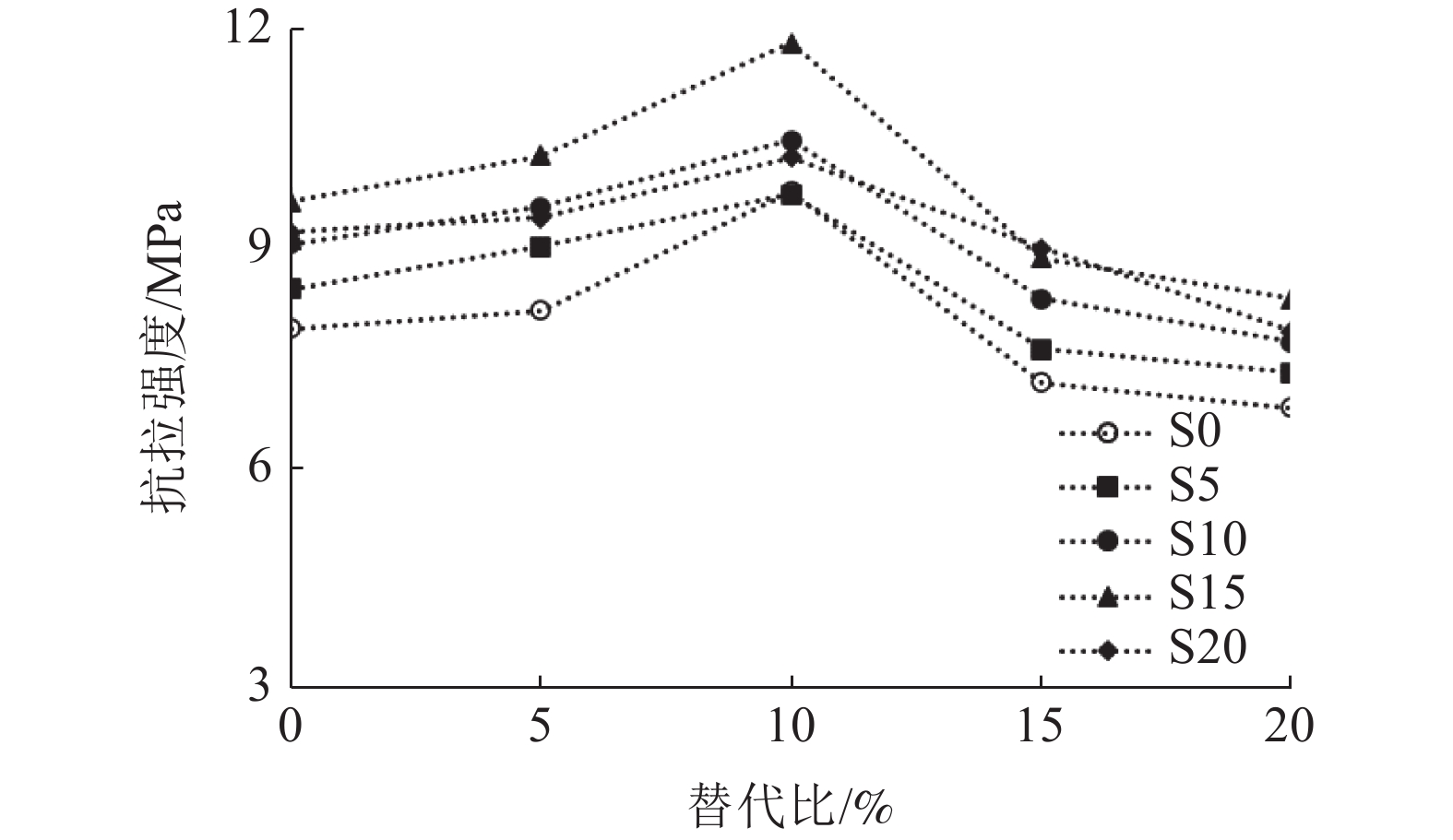

Figure 4.
Effect of iron tailings powder substitution ratio on tensile strength of concrete
-
Figure 5.
Compressive strength of concrete after chloride ion attack
-

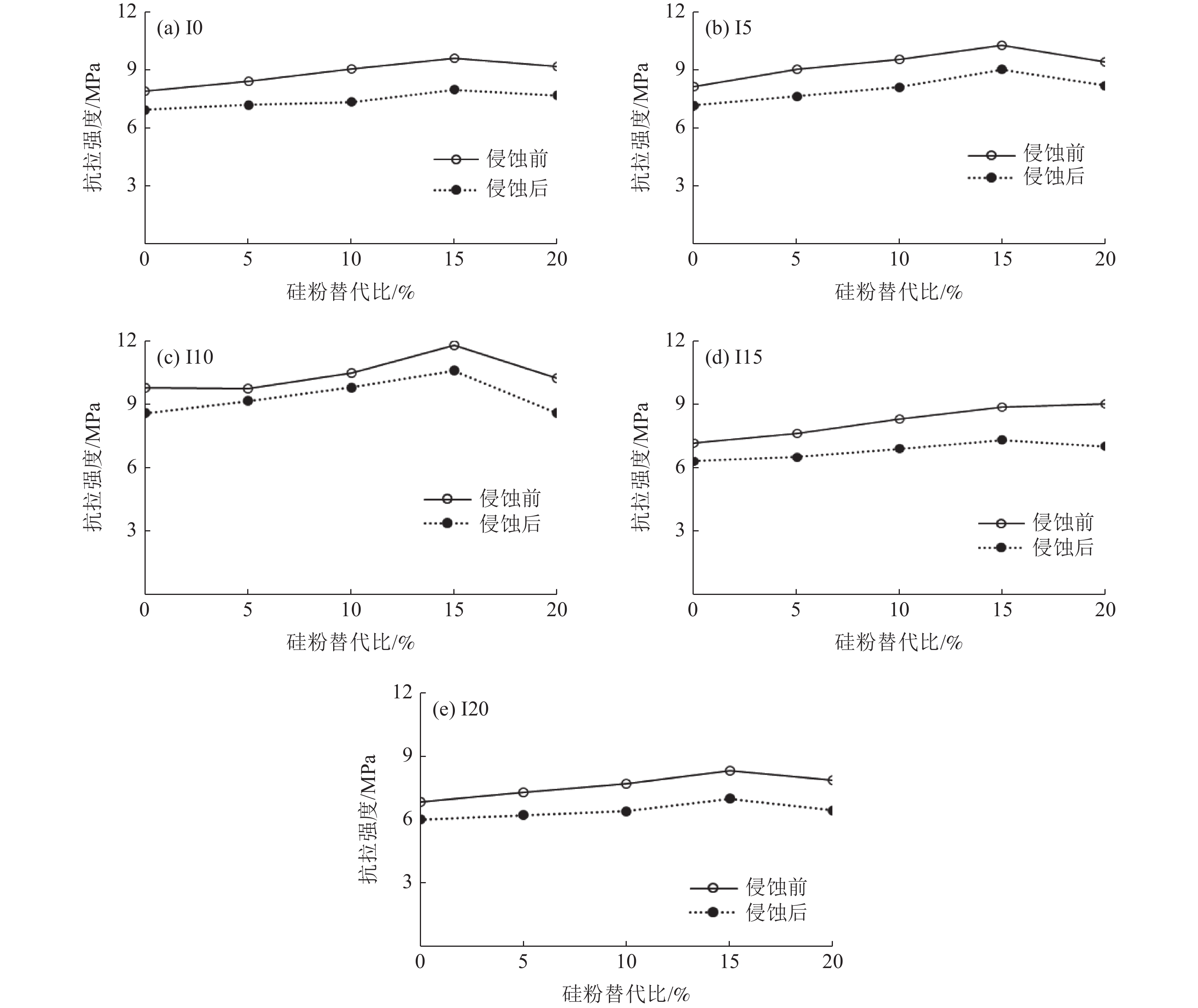

Figure 6.
Flexural strength of concrete after chloride ion attack
-
Figure 7.
Effect of fiber substitution ratio on slump of concrete
-
Figure 8.
Effect of fiber substitution ratio on elastic modulus of concrete
-

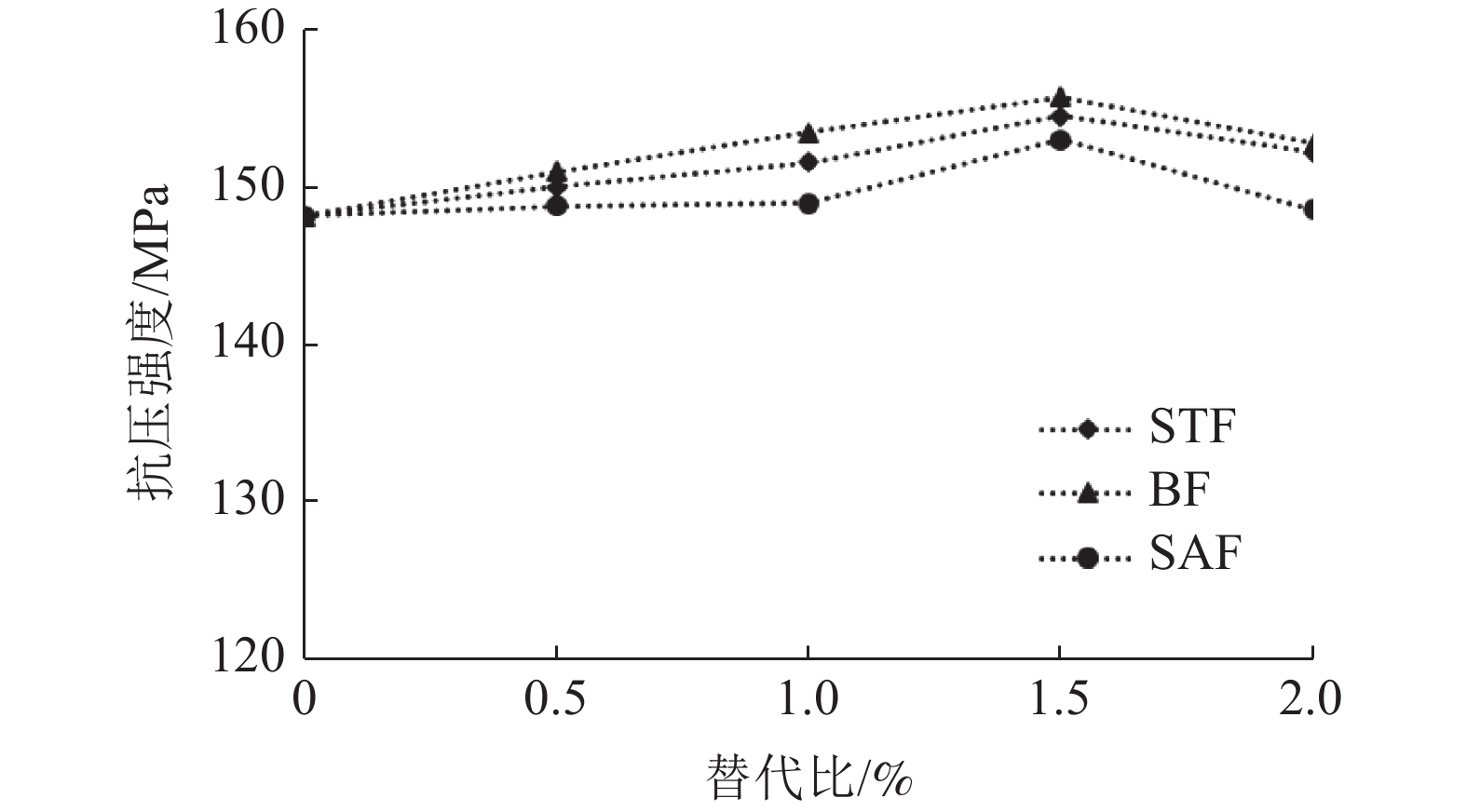

Figure 9.
Effect of fiber substitution ratio on compressive strength of concrete
-

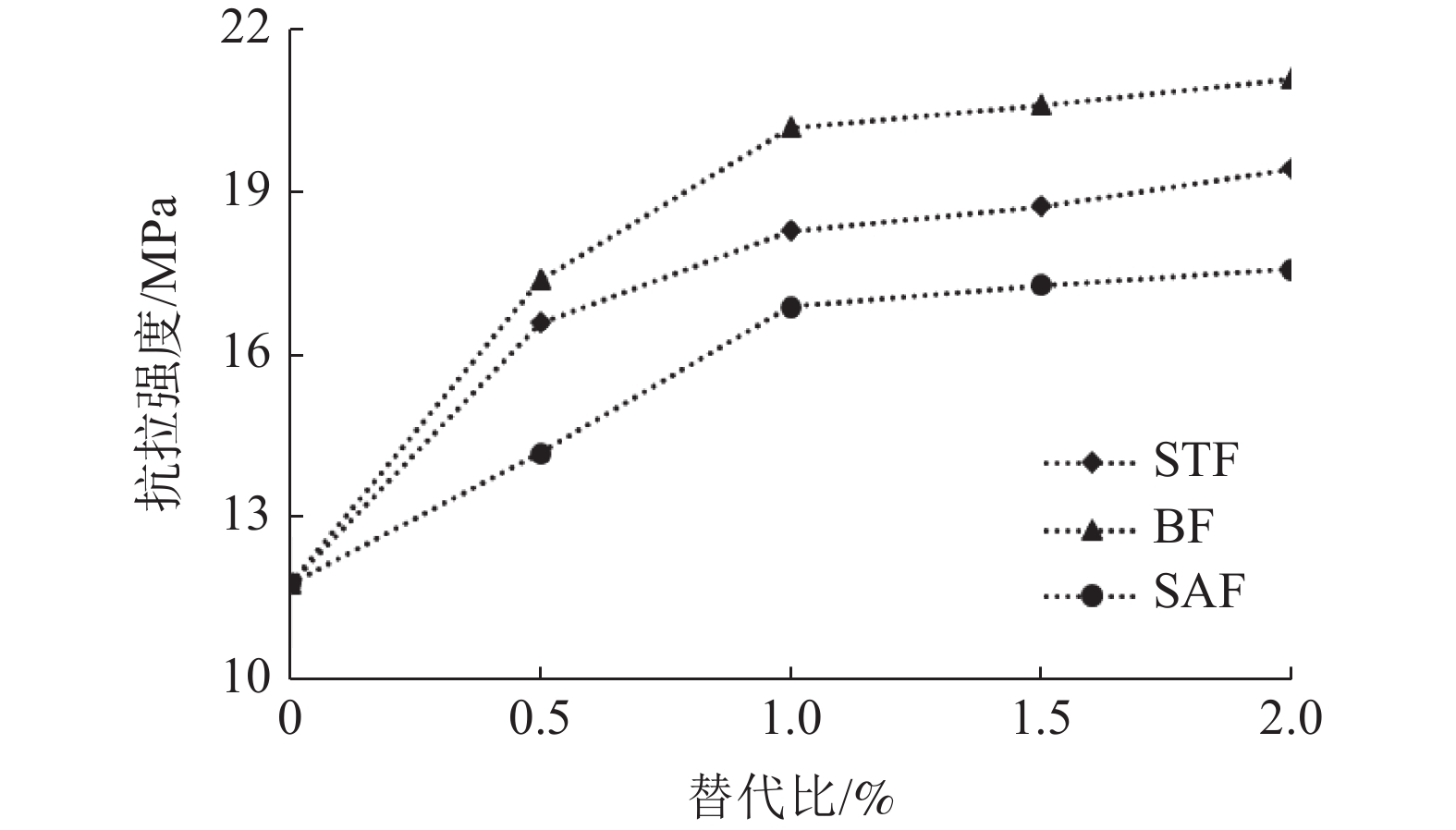

Figure 10.
Effect of fiber substitution ratio on tensile strength of concrete
-
Figure 11.
Compressive strength(a) and tensile strength (b) of concrete samples after chloride ion attack
-
Figure 12.
Microstructure of the sample containing silicon powder and iron tailings
-
Figure 13.
Microstructure of concrete sample after chloride ion attack
