Zhong-kai Bai, Xiu-xiang Lü, Zong-xu Song, Hai-jun Qiu, Xin-gui Zhou, Yong-jin Gao, Ying-min Qi, Li-chun Zhu, Xiao-tao Fu, Yuan-yuan Zhou, 2019. Characteristics of boundary fault systems and its hydrocarbon controlling on hydrocarbon accumulation in Awati Sag, Tarim Basin, China, China Geology, 2, 94-107. doi: 10.31035/cg2018095
|
Characteristics of boundary fault systems and its hydrocarbon controlling on hydrocarbon accumulation in Awati Sag, Tarim Basin, China
-
Abstract
Based on the interpretation of two-dimensional seismic data, this paper analyzes the characteristics of three boundary fault systems including the Shajingzi fault, the Aqia fault and the Tumuxiuke fault around the Awati sag of the Tarim Basin, and studies its controlling on hydrocarbon accumulation. Neotectonic movement is ubiquitous in oil and gas bearing basins in China, such as Neogene intense activities of large boundary thrusting faults of the Awati sag: Shajingzi fault, Aqia fault and Tumuxiuke fault. Based on a large number of seismic data, it is showed that they have section wise characteristics in the direction of fault strike, and active periods and associated structures formed of different sections are different. Usually, large anticlinal structures are formed in the upper wall, and faulted anticline controlled by companion faults are formed in the bottom wall. Large faults cut the strata from Cambrian up to Neogene. For the anticline in the upper wall, fault activities caused by neotectonic movement played a destructive role in hydrocarbon accumulation, thus the preservation condition is critical for reservoir formation. In this sense, attention should be paid to formations in the upper walls of Aqia fault and Tumuxiuke fault under the Cambrian salt bed, whose plastic deformation could help to heal faults. Companion faults in the bottom wall cut down to the Cambrian and up to the Triassic serving as the pathway for hydrocarbon migration, and associated structures in the bottom wall are noteworthy exploration targets.
-
Keywords:
- Neotectonic movement /
- Boundary fault /
- Reservoir forming control /
- Awati sag /
- Tarim Basin
-
-
References
[1] Chen XW, Zhu HY, Dang QN, Liu YF, Man YZ, Jiang H. 2007. Research on the fine velocity implementation in Shanan No1 structure. Natural Gas Industry, 27(Supplement A), 142–144. [2] Fu BH. 1995. Neotectonic deformation satellite imageries of Kalpin uplift in Tarim Basin. Xinjiang Geology, 13(3), 283–290. [3] Ge XH, Liu JL, Ren SM, Yuan SH. 2014. The formation and evolution of the Mesozoic-Cenozoic continental tectonics in eastern China. Geology in China, 41(1), 19–38 (in Chinese with English abstract). [4] Gong ZS, Wang GC. 2001. Neotectonism and late hydrocarbon accumulation in Bohai Sea. Acta Petrolei Sinica, 22(2), 1–7. [5] Gong ZS. 2004. Neotectonics and petroleum accumulation in offshore chinese basins. Earth Science (Journal of China University of Geosciences), 29(5), 513–517. [6] Han J, Yuan Y, Hong T, Wu ML, Pei GP, Liu JF, Zhang L. 2016. The structure of crushed zone near the Lungudong strike slip fault and its relationship with the gas and oil. Geology in China, 43(4), 1304–1316 (in Chinese with English abstract). [7] He WY, Li JH, Qian XL, Zheng DM. 2002. Analysis of fault structures in the Kalpin fault uplift, Tarim basin. Geology in China, 29(1), 37–43 (in Chinese with English abstract). [8] He ZL, Li SJ, Wo YJ, Zhang DW, Gu Y, Zhou Y. 2017. Major factors controlling hydrocarbon preservation condition in the marine basins of China and its evaluation ideas. Acta Petrologica Sinica, 33(4), 1221–1232. [9] Hu DF, Zhang HR, Ni K, Yu GC. 2014. Main controlling factors for gas preservation conditions of marine shales in south-eastern margins of the Sichuan Basin. Natural Gas Industry, 34(6), 17–23. [10] Jia CZ. 1999. Structural characteristics and oil/gas accumulative regularity in Tarim Basin. Xinjiang Petroleum Geology, 20(3), 177–183. [11] Jiang TW, Xu HL, Lian ZG, Shan JZ. 2008. Origin of tilted oil-water contact and probe into the theory of unsteady hydrocarbon accumulation. Journal of Southwest Petroleum University (Science & Technology Edition), 30(5), 1–5. [12] Jin ZJ. 2005. Particularity of petroleum exploration on marine carbonate strata in China sedimentary basins. Earth Science Frontiers, 12(3), 15–22. [13] Kang YZ. 2002. New Theory of Marine oil formation and discover of Tahe oilfield, northern Tarim Basin. Journal of Geomechanics, 8(3), 201–206. [14] Kang YZ. 2005. Cases of discovery and exploration of marine fields in China (Part 4): Tahe oilfield in Tarim Basin. Marine Petoleum Geology, 10(4), 31–38. [15] Kang YZ. 2007. Review and Revelation of Oil/Gas Discoveries in the paleozoic marine strata of China. Oil & Gas Geology, 28(5), 570–575. [16] Li T, Wang ZX. 2006. Transverse structure and model of fault slivers in the northern part of the Tarim block. Geology in China, 33(1), 14–27. [17] Liang DG. 2008. Review and Expectation on the discovery of Ordovician Lunnan-Tahe oilfield, Tarim Basin. Acta Petrolei Sinica, 29(1), 153–58. [18] Liu ZH, Lin DC, Wang WG, Zhang LG. 2001. Study on Tumuxiuke fault belt in Tarim Basin. Journal of Changchun University of Science and Technology, 31(3), 219–223. [19] Liu ZH, Wang WG, Lin DC, Zhang LG, Gao JY, Ren LW, Liu AY. 2003. Study on the faults sealing properties of Tumuxiuke fault belt in Tarim Basin. Journal of Jilin University (Earth Science Edition), 33(1), 19–25. [20] Lü XX, Li JJ, Zhao FY, Xiao ZY, Chen XW. 2007. Re-cognition on petroleum exploration prospect of marine carbonates in western Tarim Basin. Marine Petroleum Geology, 12(3), 10–14. [21] Lü XX, Bai ZK, Li JJ, Wang WG, Fu H, Wang QH. 2008. Effect of faulting on ordovician carbonate buried-hill reservoir beds in Hetianhe gas field, Tarim Basin. Journal of China University of Geosciences, 19(6), 625–635. [22] Lu YH, Qian L, Zhang HZ, Huang LC, Wu JG, He FX. 2008. Origin and geochemical characteristics of Wuluqiao oil seepage in Awat sag Tarim Basin. Marine Origin Petroleum Geology, 13(2), 45–51. [23] Luo Q. 1999. An outline of theory of fracture-controlling hydrocarbon. Explorer, 4(3), 8–14. [24] Luo Q, Sun HZ. 2000. Relationship between faulting and the preservation of oil and gas accumulation. Experimental Petroleum Geology, 22(3), 225–231. [25] Nan ZB, Li YT, Guo ZJ. 2008. Influence of Cenozoic Tectonic Dynamics on Conditions of Hydrocarbon Preservation in Qiangtang Basin, Northern Tibetan Plateau Tibet. Marine Petroleum Geology, 13(1), 45–50. [26] Sun LD, Jiang TW, Xu HL, Shan JZ, Lian ZG. 2009. Unsteady reservoir in Hadson oilfield, Tarim Basin. Petroleum Exploration and Development, 36(1), 62–67. doi: 10.1016/S1876-3804(09)60111-7 [27] Tong CG. 2000. Relationship between Neotectonic Movement and Structural Evolution and Gas Pools Formation of Sichuan Basin. Journal of Chengdu University of Technology, 27(2), 123–130. [28] Wei XF, Li YP, Wei ZH, Liu RB, Yu GC, Wang QB. 2017. Effects of preservation conditions on enrichment and high yield of shale gas in Sichuan Basin and its periphery. Petroleum Geology & Experiment, 39(2), 147–153. [29] Xi Q, Yu HZ, Gu QY, Qian L, Li XS, Li YF. 2016. Main hydrocarbon source rocks and contrasts for Awati sag in Tarim Basin. Petroleum Geology and Oilfield Development in Daqing, 35(1), 12–18. [30] Xu HL, Jiang TW, Gu QY, Zhang XF, Wu M. 2009. Control Effect of Neotectonic Movement on Hydrocarbons in Tarim Basin. Xinjiang Petroleum Geology, 30(2), 175–178. [31] Zhou XH, Niu CM, Teng CY. 2009. Relationship between faulting and hydrocarbon pooling during the neotectonic movement around the central Bohai Bay. Oil & Gas Geology, 30(4), 469–482. [32] Zhou XY, Yang HJ, Cai ZZ, Zhao FY, Hu JF. 2007. Cases of discovery and exploration of marine fields in China (Part 10): exploration and discovery of Hadeson marine sandstone oilfield. Marine Petroleum Geology, 12(4), 51–60. [33] Zhou XY, Yang, HJ, Hu JF, Zhu YF. 2010. Cases of discovery and exploration of marine fields in China (Part 13): Donghetang sandstone oil field in Tarim Basin. Marine Petroleum Geology, 15(1), 73–78. [34] Zhou YY, Lv XX, Qi YM, Bai ZK, Zhu HY, Li YF. 2011. Shajingzi fault belt and its controlling effect on hydrocarbons in Awati sag in Tarim Basin. Xinjiang Petroleum Geology, 32(6), 605–608. [35] Zhu DF, Liu HP, Wu GY. 2008. Main characteristics and structural evolution of the Tumxuk fault zone in the western Tarim Basin. Chinese Journal of Geology (Scientia Geologica Sinica), 43(2), 209–227. -
Access History
Figures(10)
Export File
Citation
Zhong-kai Bai, Xiu-xiang Lü, Zong-xu Song, Hai-jun Qiu, Xin-gui Zhou, Yong-jin Gao, Ying-min Qi, Li-chun Zhu, Xiao-tao Fu, Yuan-yuan Zhou, 2019. Characteristics of boundary fault systems and its hydrocarbon controlling on hydrocarbon accumulation in Awati Sag, Tarim Basin, China, China Geology, 2, 94-107. doi: 10.31035/cg2018095
Format
Content
DownLoad:
-

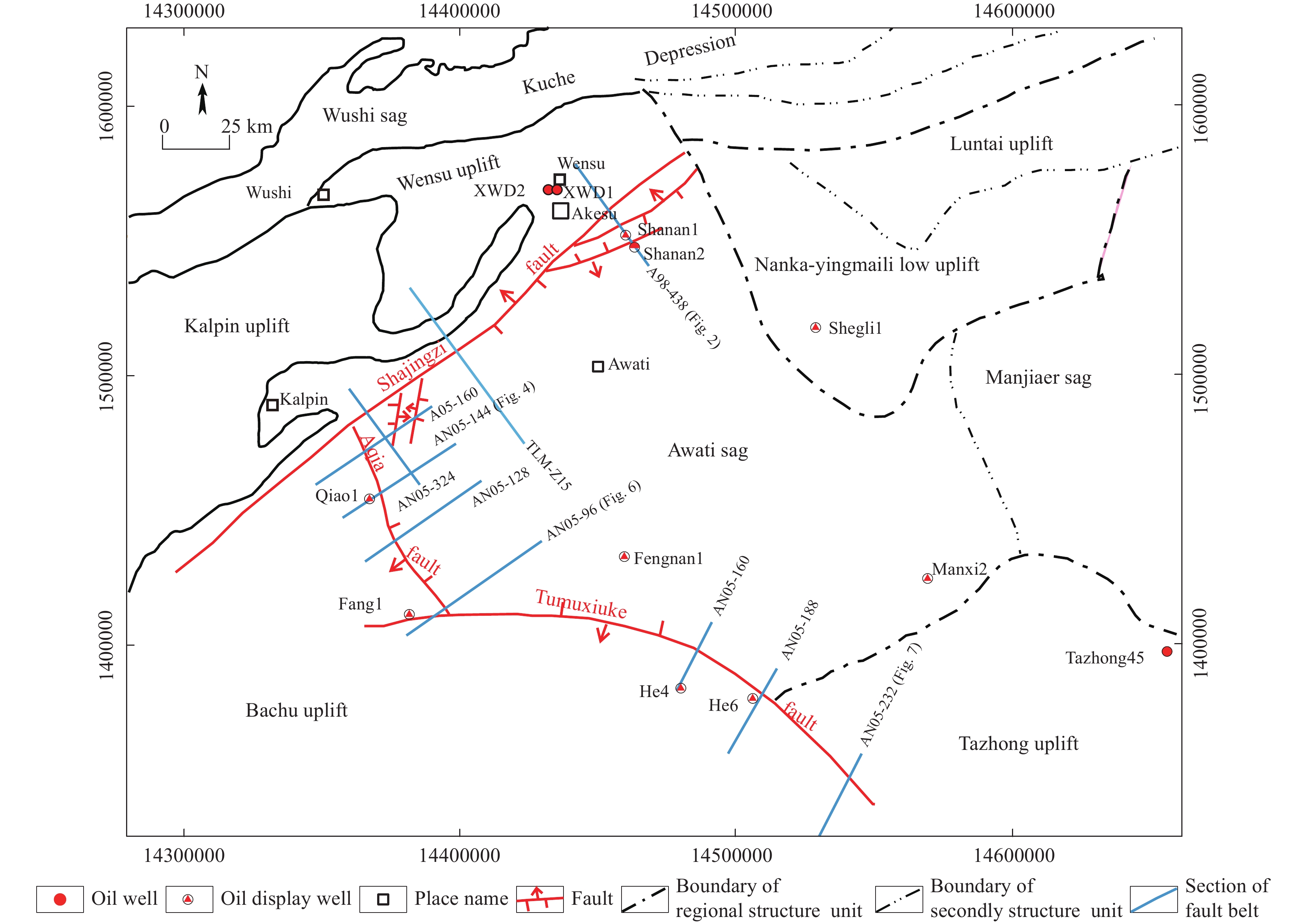

Figure 1.
The distribution of boundary faults of Awati sag, China.
-
Figure 2.
Sections of Shajingzi fault belt. a–Poststack time migration section AN05-324; b–poststack time migration section TLM-Z15; c–poststack time migration section A98-438 (Their location, length and direction are shown in Fig. 1; the faults in the figures are all reverse faults).
-
Figure 3.
Structural evolvement section of Shajingzi fault belt (the faults in the figures are all reverse faults).
-

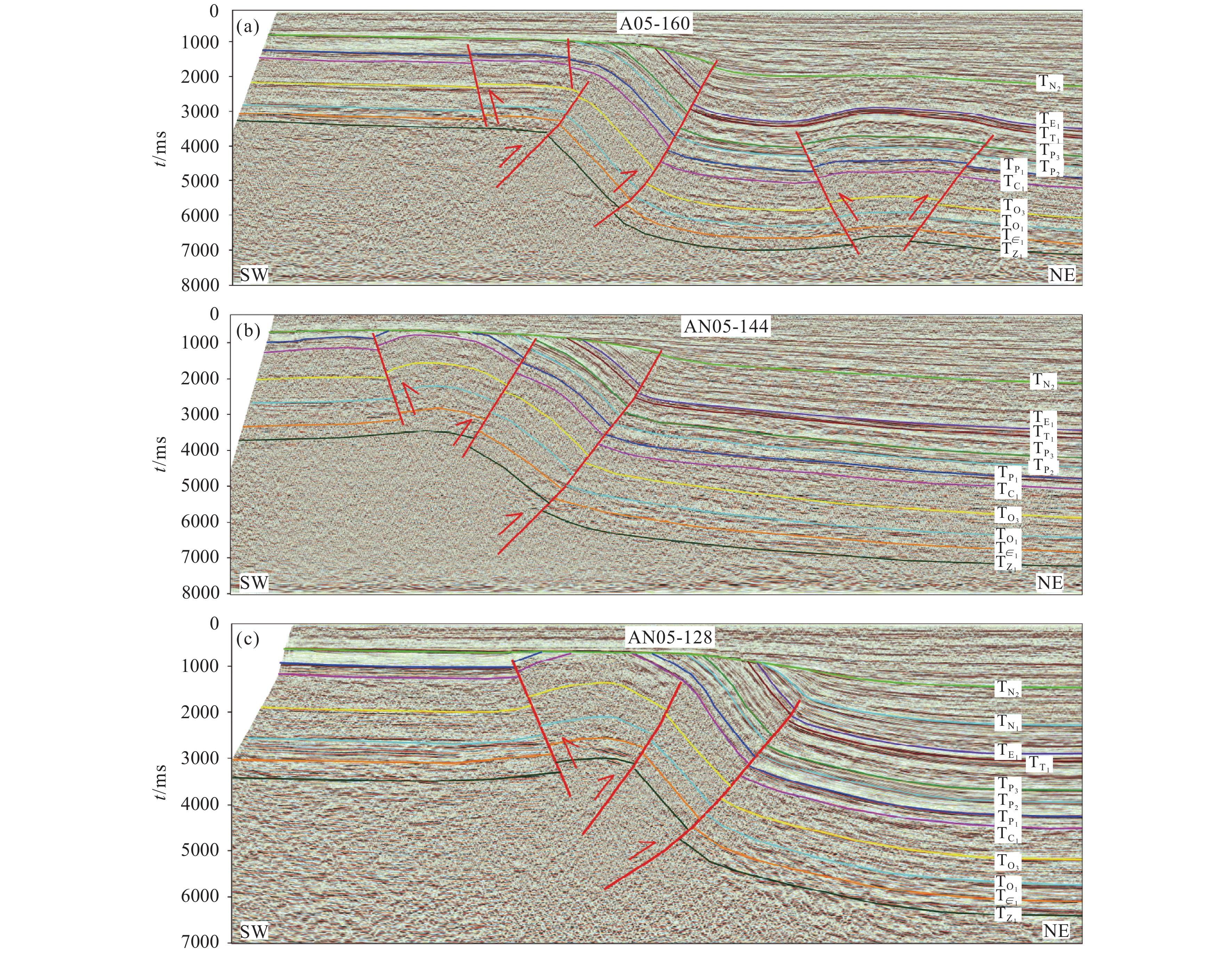

Figure 4.
Sections of Aqia fault belt. a–Poststack time migration section AN05-160; b–poststack time migration section AN05-144; c–poststack time migration section AN05-128 (Their location, length and direction are shown in Fig. 1; the faults in the figures are all reverse faults).
-
Figure 5.
Structural evolvement section of Aqia fault belt.
-
Figure 6.
Sections of Tumuxiuke fault belt. a–Poststack time migration section AN05-96; b–poststack time migration section AN05-160; the faults in the figures are all reverse faults.
-
Figure 7.
Sections of Tumuxiuke fault belt. a–poststack time migration section AN05-188; b–poststack time migration section AN05-232 (Their location, length and direction are shown in Fig. 1; the faults in the figures are all reverse faults).
-
Figure 8.

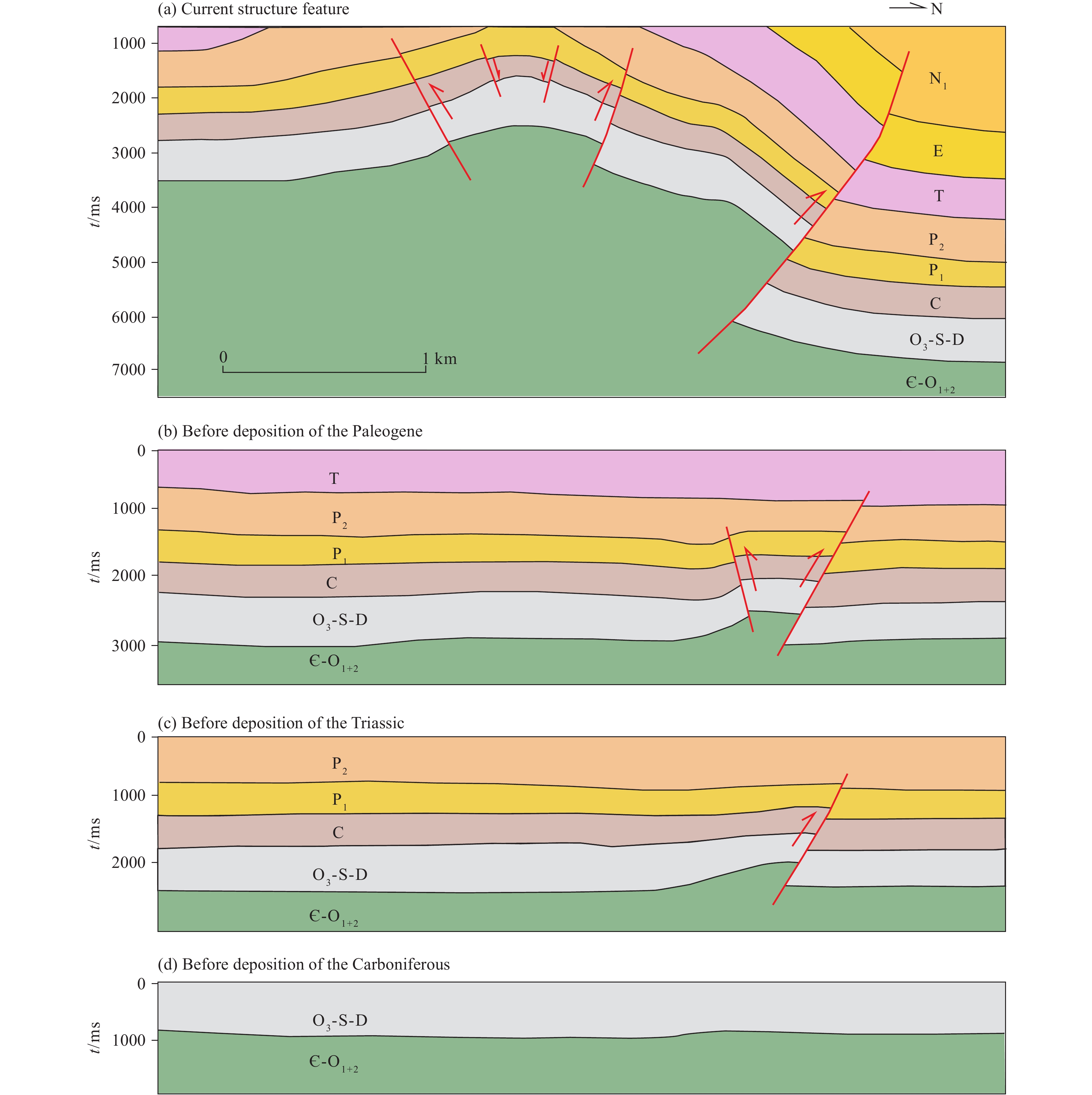

Structural evolvement section of Tumuxiuke fault belt (The faults in the figures are all reverse faults).
-

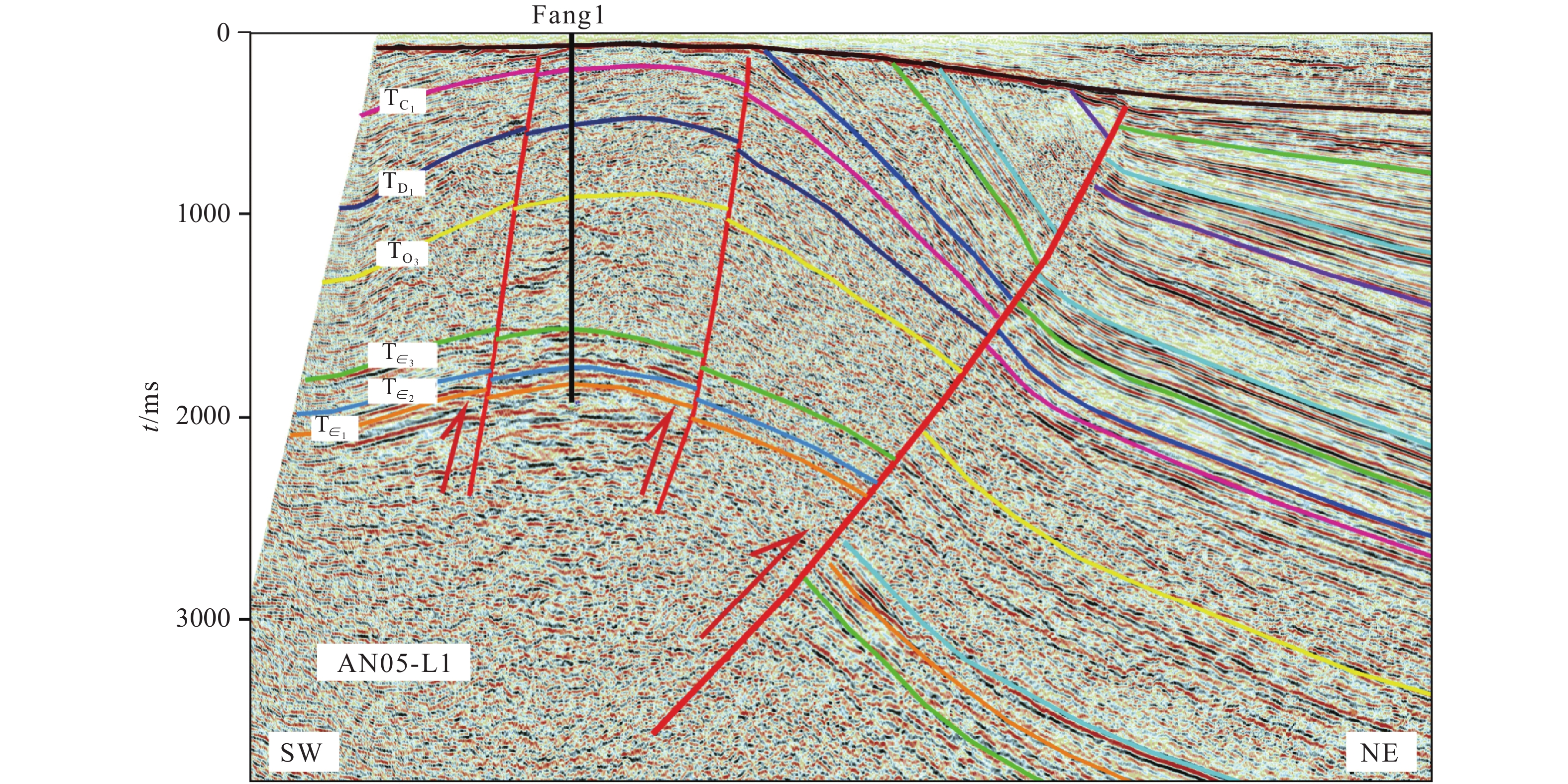

Figure 9.
Poststack time migration section AN05-L1 (across Fang1; the faults in the figures are all reverse faults)).
-
Figure 10.
Distribution characteristics of terpene and sterane between the extractive in Triassic sandstone reservoir of Shanan 1 well and Middle-Upper Ordovician source rock in Tazhong 12 well.
