THE SEISMIC DATA PROCESSING STRATEGY FOR AN UNCONVENTIONAL MONITORING SYSTEM:TAKING THE PAKISTAN GAS HYDRATE SURVEY FOR EXAMPLE

PAN Jun; GONG Jianming; LIAO Jing

doi:10.16028/j.1009-2722.2019.01007

2019 Vol. 35, No. 1

Article Contents

Article navigation > Marine Geology Frontiers > 2019 > 35(1): 60-66

Next Article Previous Article

PAN Jun, GONG Jianming, LIAO Jing. THE SEISMIC DATA PROCESSING STRATEGY FOR AN UNCONVENTIONAL MONITORING SYSTEM:TAKING THE PAKISTAN GAS HYDRATE SURVEY FOR EXAMPLE[J]. Marine Geology Frontiers, 2019, 35(1): 60-66. doi: 10.16028/j.1009-2722.2019.01007

Citation:

PAN Jun, GONG Jianming, LIAO Jing. THE SEISMIC DATA PROCESSING STRATEGY FOR AN UNCONVENTIONAL MONITORING SYSTEM:TAKING THE PAKISTAN GAS HYDRATE SURVEY FOR EXAMPLE[J]. Marine Geology Frontiers, 2019, 35(1): 60-66. doi: 10.16028/j.1009-2722.2019.01007

THE SEISMIC DATA PROCESSING STRATEGY FOR AN UNCONVENTIONAL MONITORING SYSTEM:TAKING THE PAKISTAN GAS HYDRATE SURVEY FOR EXAMPLE

Qingdao Institute of Marine Geology, CGS, Qingdao 266071, China;Function Laboratory for Marine Mineral Resource Geology and Exploration, Qingdao National Laboratory for Marine Science and Technology, Qingdao 266071, China

More Information

Corresponding author: GONG Jianming, gongjianm@aliyun.com

Revised Date: 30 July 2018

Publish Date: 28 January 2019

Abstract

Abstract

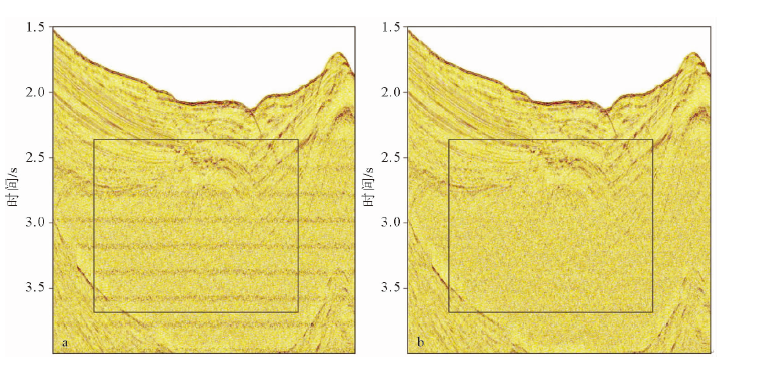

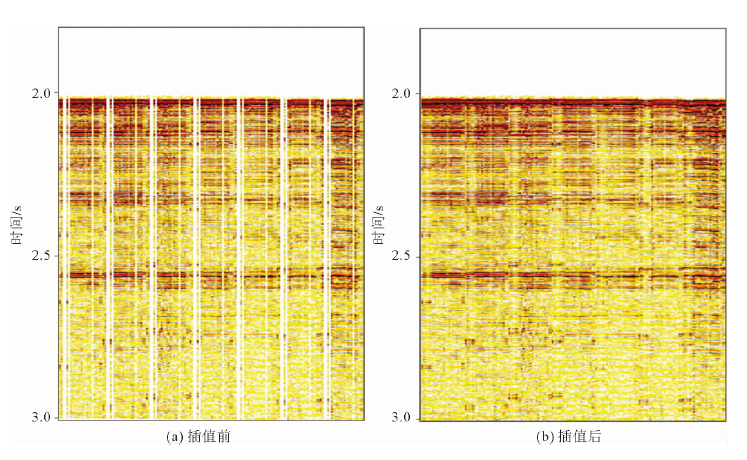

Gas hydrate is quite rich in offshore Pakistan. In order to pursue the occurrence of gas hydrate, multiple channel seismic survey was deployed. The data, however, was unconventional due to the acquisition environment which is only 1.2 fold and short in cable, rich in serious cable noise and of missing data sometimes. Therefore, the data need a special flow for processing. The key principle of data processing is to transform the unconventional seismic data processing into the conventional. Both the parameters of the module and the combination of the flow might be changed for conventional data processing. The key point is to increase the signal to noise ratio and the flow, including anomalous amplitude attenuation, missing data interpolation, adjacent CMP gather summation and migration. The processed section may satisfy the requirements of gas hydrate exploration.
- gas hydrate /
- BSR /
- unconventional seismic data processing /
- Pakistan

FullText(HTML)

References

[1]	Kukowski N, Schillhorn T, Flueh E R, et al. Newly identified strike-slip plate boundary in the northeastern Arabian Sea[J]. Geology, 2000, 28(4): 355-358. doi: 10.1130/0091-7613(2000)28<355:NISPBI>2.0.CO;2 CrossRef Google Scholar
[2]	Grando G, McClay K. Morphotectonics domains and structural styles in the Makran accretionary prism, offshore Iran[J]. Sedimentary Geology, 2007, 196(1/4): 157-179. Google Scholar
[3]	Delisle G, Rad U V, Andruleit H, et al. Active mud volcanoes on-and offshore eastern Makran, Pakistan[J]. International Journal of Earth Sciences, 2002, 91(1): 93-110. Google Scholar
[4]	Wiedicke M, Neben S, Spiess V. Mud volcanoes at the front of the Makran accretionary complex, Pakistan[J]. Marine Geology, 2001, 172(1):57-73. Google Scholar
[5]	Schlüter H U, Prexl A, Gaedicke C, et al. The Makran accretionary wedge: sediment thicknesses and ages and the origin of mud volcanoes[J]. Marine Geology, 2002, 185(3):219-232. Google Scholar
[6]	Ding F, Spiess V, Fekete N, et al. Interaction between accretionary thrust faulting and slope sedimentation at the frontal Makran accretionary prism and its implications for hydrocarbon fluid seepage[J]. Journal of Geophysical Research Solid Earth, 2010, 115(B08106): 1-16. Google Scholar
[7]	Smith G L, Mcneill L C, Henstock T J, et al. Fluid generation and distribution in the highest sediment input accretionary margin, the Makran[J]. Earth & Planetary Science Letters, 2014, 403:131-143. Google Scholar
[8]	Rad U V, Berner U, Delisle G, et al. Gas and fluid venting at the Makran accretionary wedge off Pakistan[J]. Geo-Marine Letters, 2000, 20(1):10-19. doi: 10.1007/s003670000033 CrossRef Google Scholar
[9]	Kaul N, Rosenberger A, Villinger H. Comparison of measured and BSR-derived heat flow values, Makran accretionary prism, Pakistan[J]. Marine Geology, 2000, 164(1): 37-51. Google Scholar
[10]	弗斯丘尔D J.地震多次波去除技术的过去、现在和未来[M].陈浩林, 张保庆, 刘军, 等, 译.北京:石油工业出版社, 2010:71-119. Google Scholar
[11]	VerschuurD J, Berkhout A J, Wapenaar C P A. Adaptive surface-related multiple elimination[J].Geophysics, 1992, 57:1166-1177. doi: 10.1190/1.1443330 CrossRef Google Scholar
[12]	潘军, 栾锡武, 刘鸿, 等.异常振幅衰减技术在多道地震数据处理中的应用[J].地球物理学进展, 2016, 31(4): 1639-1645. Google Scholar
[13]	Spitz S. Seismic trace interpolation in the F-X domain[J] Geophysics, 1991, 56: 785-794. Google Scholar
[14]	Lee M W, Suh S Y. Optimization of one-way wave equations[J].Geophysics, 1985, 50:1634-1637. doi: 10.1190/1.1441853 CrossRef Google Scholar
[15]	渥·伊尔马兹.地震资料分析:地震资料处理、反演和解释[M].刘怀山, 王克斌, 童思友, 等, 译.北京:石油工业出版社, 2006:395-405. Google Scholar
