ZHANG Shouchuan, LIU Kai, WANG Luyao, ZHU Wei, DENG Yuefei, YU Chenghua. Identifying the Hydrochemical Characteristics and Genetic Mechanism of Medium-Low Temperature Fluoride-Enriched Geothermal Groundwater in the Hongjiang—Qianshan Fault of Jiangxi Province[J]. Rock and Mineral Analysis, 2024, 43(4): 568-581. doi: 10.15898/j.ykcs.202403030028
|
Identifying the Hydrochemical Characteristics and Genetic Mechanism of Medium-Low Temperature Fluoride-Enriched Geothermal Groundwater in the Hongjiang—Qianshan Fault of Jiangxi Province
-
Abstract
The Hongjiang—Qianshan fault has abundant medium-low temperature geothermal resources. However, the excessive fluorine concentration in geothermal groundwater restricts the development and utilization of geothermal resources. 20 samples were collected in this region for identifying the genetic mechanism of medium-low temperature of fluoride-enriched geothermal resources. The hydrochemical results indicate that the hydrochemical characteristic of high fluoride geothermal groundwater is HCO3-Na. The groundwater environment is alkaline and weakly alkaline. The fluoride concentration in geothermal groundwater is 2−12 times greater than the upper limited value, while those in the surface water and shallow groundwater are within the permittable threshold range. The isotopic results reveal that the recharge elevations and circulation depth are 797−2186m and 893−1893m, respectively. Quartz provides the most reliable estimations of reservoir temperatures, ranging from 79.4℃ to 113.1℃. The fluoride in geothermal groundwater originates from the rock weathering and mineral dissolution. Cation exchange and alkaline condition are the main influence factors for fluorine enrichment. The BRIEF REPORT is available for this paper at
http://www.ykcs.ac.cn/en/article/doi/10.15898/j.ykcs.yk202403030028 .-
Keywords:
- fluoride /
- medium-low temperature geothermal water /
- hydrochemistry /
- isotope /
- Jiangxi Province
-
-
References
[1] 汪集暘, 庞忠和, 程远志, 等. 全球地热能的开发利用现状与展望[J]. 科技导报, 2023, 41(12): 5−11. Wang J Y, Pang Z H, Cheng Y Z, et al. Current state, utilization and prospective of global geothermal energy[J]. Science & Technology Review, 2023, 41(12): 5−11. [2] 胡虹羽, 卢国平, 李岩, 等. 琼北地区地热水中氟的富集规律[J]. 环境化学, 2023, 42(5): 1633−1641. Hu H Y, Lu G P, Li Y, et al. Study on enrichment of fluorine in geothermal water in Qiongbei area[J]. Environmental Chemistry, 2023, 42(5): 1633−1641. [3] 张浩然, 刘凯, 张垚垚, 等. 江西芦溪县南部大地热流特征[J]. 地球学报, 2024, 45(1): 25−37. doi: 10.3975/cagsb.2023.101001 Zhang H R, Liu K, Zhang Y Y, et al. Characteristics of terrestrial heat flow in the south of Luxi County, Jiangxi Province[J]. Acta Geoscientica Sinica, 2024, 45(1): 25−37. doi: 10.3975/cagsb.2023.101001 [4] 王安东, 孙占学, 蔺文静, 等. 江西省地热资源赋存特征及潜力评价[J]. 中国地质, 2023, 50(6): 1646−1654. doi: 10.12029/gc20210909003 Wang A D, Sun Z X, Lin W J, et al. Occurrence features of geothermal resources and geothermal potential assessment of Jiangxi Province[J]. Geology in China, 2023, 50(6): 1646−1654. doi: 10.12029/gc20210909003 [5] 张垚垚, 刘凯, 童珏, 等. 江西吉安钱山地区地热资源特征及热源机制[J]. 地球学报, 2024, 45(1): 39−52. doi: 10.3975/cagsb.2022.122701 Zhang Y Y, Liu K, Tong J, et al. Characteristics and heat source mechanism of geothermal resources in Qianshan area of Ji’an, Jiangxi Province[J]. Acta Geoscientica Sinica, 2024, 45(1): 39−52. doi: 10.3975/cagsb.2022.122701 [6] 刘峰, 王贵玲, 张薇, 等. 江西宁都县北部大地热流特征及地热资源成因机制[J]. 地质通报, 2020, 39(12): 1883−1890. doi: 10.12097/j.issn.1671-2552.2020.12.002 Liu F, Wang G L, Zhang W, et al. Terrestrial heat flow and geothermal genesis mechanism of geothermal resources in Northern Ningdu County, Jiangxi Province[J]. Geological Bulletin of China, 2020, 39(12): 1883−1890. doi: 10.12097/j.issn.1671-2552.2020.12.002 [7] Yang J, Huo Z, Li X, et al. Hot weather event-based characteristics of double-early rice heat risk: A study of Jiangxi Province, South China[J]. Ecological Indicators, 2020, 113(1): 106148. [8] 马峰, 王贵玲, 张薇, 等. 古潜山热储开发对地面沉降的影响机制研究[J]. 中国地质, 2021, 48(1): 40−51. doi: 10.12029/gc20210103 Ma F, Wang G L, Zhang W, et al. Influence mechanism of ancient buried hill geothermal development on land subsidence[J]. Geology in China, 2021, 48(1): 40−51. doi: 10.12029/gc20210103 [9] 樊柄宏, 叶海龙, 白细民, 等. 地热流体动态对温汤地热田地热水灌采平衡的指示意义[J]. 地质论评, 2024, 70(S1): 195−198. Fan B H, Ye H L, Bai X M, et al. Indicative significance of geothermal fluid dynamics on the balance of geothermal water injection and extraction in Wentang geothermal field[J]. Geological Review, 2024, 70(S1): 195−198. [10] Cigna F, Tapete D, Garduño-Monroy H V, et al. Wide-area InSAR survey of surface deformation in urban areas and geothermal fields in the eastern Trans—Mexican volcanic belt, Mexico[J]. Remote Sensing, 2019, 11(20): 2341. doi: 10.3390/rs11202341 [11] 张永红, 刘冰, 吴宏安, 等. 雄安新区2012—2016年地面沉降InSAR监测[J]. 地球科学与环境学报, 2018, 40(5): 652−662. doi: 10.3969/j.issn.1672-6561.2018.05.013 Zhang Y H, Liu B, Wu H A, et al. Ground subsidence in Xiong’an New Area from 2012 to 2016 monitored by InSAR technique[J]. Journal of Earth Sciences and Environment, 2018, 40(5): 652−662. doi: 10.3969/j.issn.1672-6561.2018.05.013 [12] 邹鹏飞, 王彩会, 杜建国, 等. 地热水系统采灌方案模拟优化研究——以苏北农村清洁能源供暖示范区为例[J]. 水文地质工程地质, 2023, 50(4): 59−72. Zou P F, Wang C H, Du J G, et al. A study of simulation and optimization of the production-reinjection scheme of a geothermal water system: A case study of the geothermal space heating demonstration area in Northern Jiangsu countryside[J]. Hydrogeology & Engineering Geology, 2023, 50(4): 59−72. [13] 王贵玲, 刘彦广, 朱喜, 等. 中国地热资源现状及发展趋势[J]. 地学前缘, 2020, 27(1): 1−9. Wang G L, Liu Y G, Zhu X, et al. The status and development trend of geothermal resources in China[J]. Earth Science Frontiers, 2020, 27(1): 1−9. [14] 李娜娜, 陶诚, 孔彦龙, 等. 全球地热发电现状与研究进展[J]. 热力发电, 2024, 53(6): 1−11. Li N N, Tao C, Kong Y L, et al. Status and research progress of geothermal power generation development and utilization[J]. Thermal Power Generation, 2024, 53(6): 1−11. [15] 陈劲松, 周金龙, 陈云飞, 等. 新疆喀什地区地下水氟的空间分布规律及其富集因素分析[J]. 环境化学, 2020, 39(7): 1800−1808. Chen J S, Zhou J L, Chen Y F, et al. Spatial distribution and enrichment factors of groundwater fluoride in Kashgar region, Xinjiang[J]. Environmental Chemistry, 2020, 39(7): 1800−1808. [16] 韩江涛, 牛璞, 刘立家, 等. 地热资源与地震活动共生深部驱动机制研究现状与展望[J]. 吉林大学学报(地球科学版), 2023, 53(6): 1950−1968. Han J T, Niu P, Liu L J, et al. Research status and prospect of deep driving mechanism of co-occurrence of geothermal resources and seismic activities[J]. Journal of Jilin University (Earth Science Edition), 2023, 53(6): 1950−1968. [17] 任宇, 曹文庚, 潘登, 等. 2010—2020年黄河下游河南典型灌区浅层地下水中砷和氟的演化特征及变化机制[J]. 岩矿测试, 2021, 40(6): 846−859. doi: 10.3969/j.issn.0254-5357.2021.6.ykcs202106005 Ren Y, Cao W G, Pan D, et al. Evolution characteristics and change mechanism of arsenic and fluorine in shallow groundwater from a typical irrigation area in lower reaches of the Yellow River (Henan) in 2010—2020[J]. Rock and Mineral Analysis, 2021, 40(6): 846−859. doi: 10.3969/j.issn.0254-5357.2021.6.ykcs202106005 [18] 吕晓立, 郑跃军, 刘可, 等. 兰州不同城镇功能区地下水氟赋存特征及影响因素[J]. 水文地质工程地质, 2024, 51(2): 215−226. Lyu X L, Zheng Y J, Liu K, et al. Characteristic and driving factors of fluoride in groundwater in different urban functional area of Lanzhou City[J]. Hydrogeology & Engineering Geology, 2024, 51(2): 215−226. [19] Li J, Wu Z, Tian G, et al. Processes controlling the hydrochemical composition of geothermal fluids in the sandstone and dolostone reservoirs beneath the sedimentary basin in North China[J]. Applied Geochemistry, 2022, 138: 105211. doi: 10.1016/j.apgeochem.2022.105211 [20] 张福存, 文冬光, 郭建强, 等. 中国主要地方病区地质环境研究进展与展望[J]. 中国地质, 2010, 37(3): 551−562. doi: 10.3969/j.issn.1000-3657.2010.03.002 Zhang F C, Wen D G, Guo J Q, et al. Research progress and prospect of geological environment in main endemic disease area[J]. Geology in China, 2010, 37(3): 551−562. doi: 10.3969/j.issn.1000-3657.2010.03.002 [21] 赵锁志, 王喜宽, 黄增芳, 等. 内蒙古河套地区高氟水成因分析[J]. 岩矿测试, 2007, 26(4): 320−324. doi: 10.3969/j.issn.0254-5357.2007.04.015 Zhao S Z, Wang X K, Huang Z F, et al. Study on formation causes of high fluorine groundwater in Hetao area of Inner Mongolia[J]. Rock and Mineral Analysis, 2007, 26(4): 320−324. doi: 10.3969/j.issn.0254-5357.2007.04.015 [22] Qu S, Duan L, Shi Z, et al. Identifying the spatial pattern, driving factors and potential human health risks of nitrate and fluoride enriched groundwater of Ordos Basin, Northwest China[J]. Journal of Cleaner Production, 2022, 376: 134289. doi: 10.1016/j.jclepro.2022.134289 [23] Wang M Z, Su C L, Wang X G, et al. Spatial pattern, hydrogeochemical controlling processes and non-carcinogenic risks of fluoride-enriched groundwater in the North Henan Plain, Northern China[J]. Applied Geochemistry, 2024, 163: 105934. doi: 10.1016/j.apgeochem.2024.105934 [24] 何锦, 张福存, 韩双宝, 等. 中国北方高氟地下水分布特征和成因分析[J]. 中国地质, 2010, 37(3): 621−626. doi: 10.3969/j.issn.1000-3657.2010.03.012 He J, Zhang F C, Han S B, et al. The distribution and genetic types of high-fluoride groundwater in Northern China[J]. Geology in China, 2010, 37(3): 621−626. doi: 10.3969/j.issn.1000-3657.2010.03.012 [25] Xiao Y, Hao Q C, Zhang Y, et al. Investigating sources, driving forces and potential health risks of nitrate and fluoride in groundwater of a typical alluvial fan plain[J]. Science of the Total Environment, 2022, 802: 149909. doi: 10.1016/j.scitotenv.2021.149909 [26] 吴光伟, 李浩林, 王庆兵, 等. 鲁西北平原地下水高氟与高碘成因分析[J]. 岩矿测试, 2023, 42(4): 793−808. doi: 10.15898/j.ykcs.202207190134 Wu G W, Li H L, Wang Q B, et al. Mobilization mechanisms of high fluorine and iodine groundwater in the Northwest Shandong Plain[J]. Rock and Mineral Analysis, 2023, 42(4): 793−808. doi: 10.15898/j.ykcs.202207190134 [27] 王喜宽, 黄增芳, 赵锁志, 等. 河套地区盐碱化和砷氟中毒问题探讨[J]. 岩矿测试, 2007, 26(4): 328−330. doi: 10.3969/j.issn.0254-5357.2007.04.017 Wang X K, Huang Z F, Zhao S Z, et al. A preliminary study on soil salification and arseniasis-fluorosis in Hetao area[J]. Rock and Mineral Analysis, 2007, 26(4): 328−330. doi: 10.3969/j.issn.0254-5357.2007.04.017 [28] Su H, Kang W R, Li Y R, et al. Fluoride and nitrate contamination of groundwater in the loess plateau, China: Sources and related human health risks[J]. Environmental Pollution, 2021, 286: 117287. doi: 10.1016/j.envpol.2021.117287 [29] Wang Z, Guo H M, Xing S P, et al. Hydrogeochemical and geothermal controls on the formation of high fluoride groundwater[J]. Journal of Hydrology, 2021, 598: 126372. doi: 10.1016/j.jhydrol.2021.126372 [30] Craig H. Isotopic variations in meteoric waters[J]. Science, 1961, 133(3465): 1702−1703. doi: 10.1126/science.133.3465.1702 [31] 于津生, 虞福基, 刘德平. 中国东部大气降水氢、氧同位素组成[J]. 地球化学, 1987(1): 22−26. doi: 10.3321/j.issn:0379-1726.1987.01.003 Yu J S, Yu F J, Liu D P. The oxygen and hydrogen isotopic compositions of meteoric waters in the eastern part of China[J]. Geochimica, 1987(1): 22−26. doi: 10.3321/j.issn:0379-1726.1987.01.003 [32] Jia W H, Liu K, Yan J K, et al. Characteristics of geothermal waters in Eastern Wugongshan based on hydrogen, oxygen, and strontium isotopes[J]. Applied Geochemistry, 2023, 161: 105874. doi: 10.1016/j.apgeochem.2023.105874 [33] 余廷溪, 刘凯, 孙军亮, 等. 江西省安福地区地热水化学特征研究[J]. 地球学报, 2024, 45(1): 99−111. doi: 10.3975/cagsb.2022.121601 Yu T X, Liu K, Sun J L, et al. Hydrochemical character-istics of geothermal water in Anfu area, Jangxi Province[J]. Acta Geoscientica Sinica, 2024, 45(1): 99−111. doi: 10.3975/cagsb.2022.121601 -
Access History
Figures(8)
Tables(4)
Export File
Citation
ZHANG Shouchuan, LIU Kai, WANG Luyao, ZHU Wei, DENG Yuefei, YU Chenghua. Identifying the Hydrochemical Characteristics and Genetic Mechanism of Medium-Low Temperature Fluoride-Enriched Geothermal Groundwater in the Hongjiang—Qianshan Fault of Jiangxi Province[J]. Rock and Mineral Analysis, 2024, 43(4): 568-581. doi: 10.15898/j.ykcs.202403030028
Format
Content
DownLoad:
-
Figure 1.
The distribution of sampling sites in the Hongjiang—Qianshan Fault
-
Figure 2.
The Piper diagrams of different samples collected from the Hongjiang—Qianshan Fault.
-

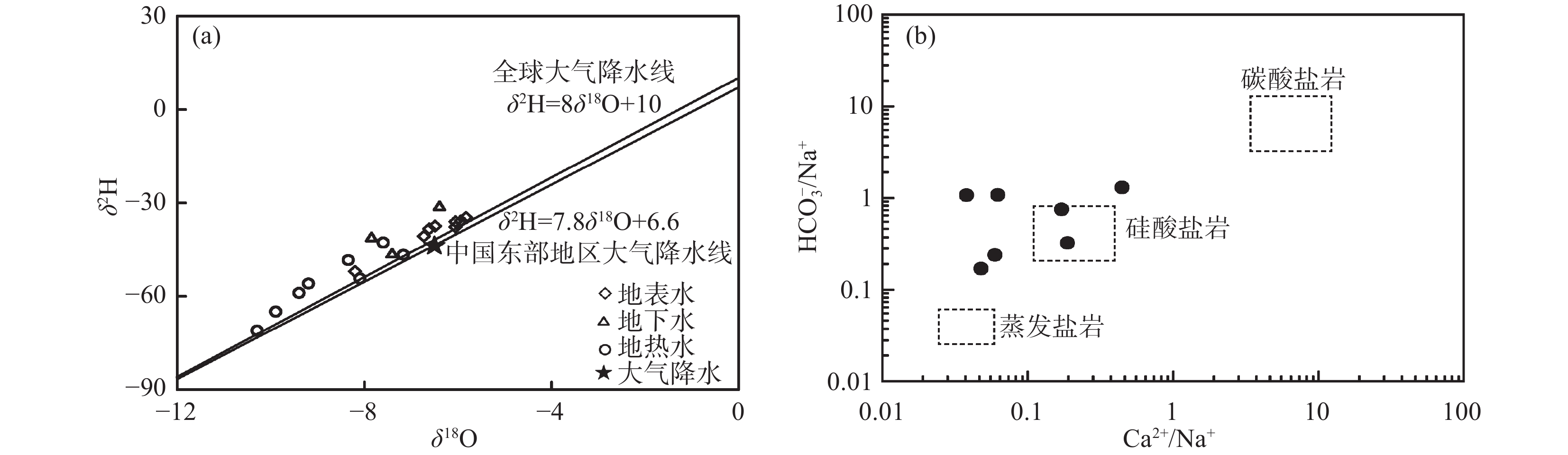

Figure 3.
(a) The relationship between δ2H and δ18O in different samples; (b) The relationship between Ca2+/Na+ and HCO3−/Na+ in geothermal groundwater samples
-
Figure 4.
The ionic relationship in geothermal groundwater in the study area: (a) Na-K-Mg; (b) log(K2/Mg)-log(SiO2)
-
Figure 5.
(a) The saturation index (SI) vs total dissolved solids (TDS) of geothermal groundwater; (b) The diagram of pH and F− concentration in geothermal samples.
-
Figure 6.
The Gibbs diagrams of different samples: (a) Relationship between Na+/(Na++Ca2+) and TDS; (b) Relationship between Cl−/(Cl−+HCO3 − ) and TDS
-

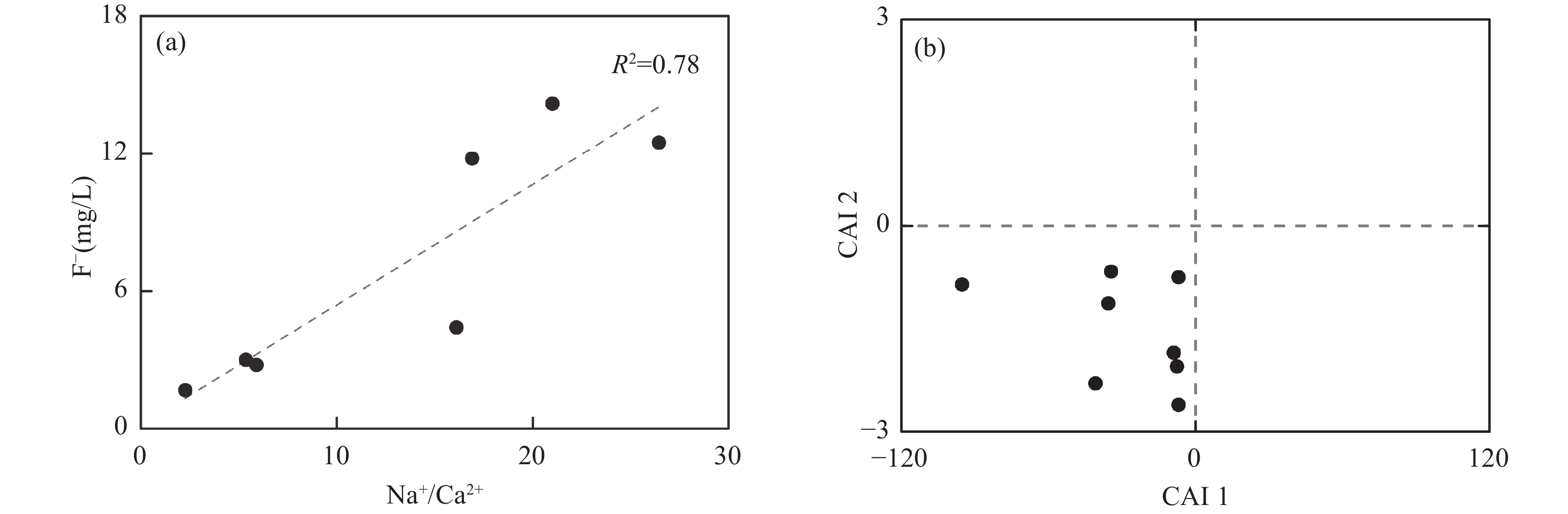

Figure 7.
(a) Relationship between hydrochemical paremeters in geothermal groundwater of Na+/Ca2+ vs F− concentration; (b) The diagram of CAI 1 vs CAI 2.
-
Figure E.1.
(a) The relationship between δ2H and δ18O in different samples; (b) The Gibbs diagram of different samples; (c) The saturation index (SI) vs total dissolved solids (TDS) of geothermal groundwater; (d) The diagram of CAI 2 vs CAI 1.
