Distribution of suspended sediments and action of nearshore currents in Xiangyun Island, Laoting County, Hebei Province

WEN Mingzheng; TIAN Lizhu; ZHANG Shaotong; YANG Peng; LI Yong; WANG Fu; WANG Zhenhao

doi:10.12029/gc20210326006

2025 Vol. 52, No. 2

Article Contents

Article navigation > Geology in China > 2025 > 52(2): 745-755

Next Article Previous Article

WEN Mingzheng, TIAN Lizhu, ZHANG Shaotong, YANG Peng, LI Yong, WANG Fu, WANG Zhenhao. 2025. Distribution of suspended sediments and action of nearshore currents in Xiangyun Island, Laoting County, Hebei Province[J]. Geology in China, 52(2): 745-755. doi: 10.12029/gc20210326006

Citation:

WEN Mingzheng, TIAN Lizhu, ZHANG Shaotong, YANG Peng, LI Yong, WANG Fu, WANG Zhenhao. 2025. Distribution of suspended sediments and action of nearshore currents in Xiangyun Island, Laoting County, Hebei Province[J]. Geology in China, 52(2): 745-755. doi: 10.12029/gc20210326006

Distribution of suspended sediments and action of nearshore currents in Xiangyun Island, Laoting County, Hebei Province

1.
Tianjin Center, China Geological Survey, Tianjin 300170, China
2.
CGS Key Laboratory of Coast Geo-environment, Tianjin, 300170, China
3.
Tianjin Key Laboratory of Coast Geological Processes and Environmental Safety, Tianjin 300170, China
4.
Ocean University of China, Qingdao 266100, Shandong, China
5.
First Institute of Oceannography, Ministry of Natural Resources, Qingdao 266061, Shandong, China

Fund Project: Supported by the projects of China Geological Survey (No. DD20211301, No.121201006000182401).

More Information

Author Bio: WEN Mingzheng, male, born in 1988, doctor candidate, majors in marine environmental geology; E-mail: wmingzheng@mail.cgs.gov.cn
Corresponding author: WANG Fu, male, born in 1979, researcher, mainly engaged in modern sediment dating and coastal geological environment research; E-mail: wfu@cgs.cn.

Received Date: 26 March 2021

Revised Date: 21 May 2021

Publish Date: 25 March 2025

Abstract

Abstract

This paper is the result of marine geological survey engineering.
Objective
There are high−quality natural fine sand distributed along the coast of Xiangyun Island in Hebei, which is a famous coastal tourist island. Simultaneous investigation and research on the concentration of suspended sediments and nearshore current in this area is of great significance to the ecological environment of Xiangyun Island and its nearshore engineering.
Methods

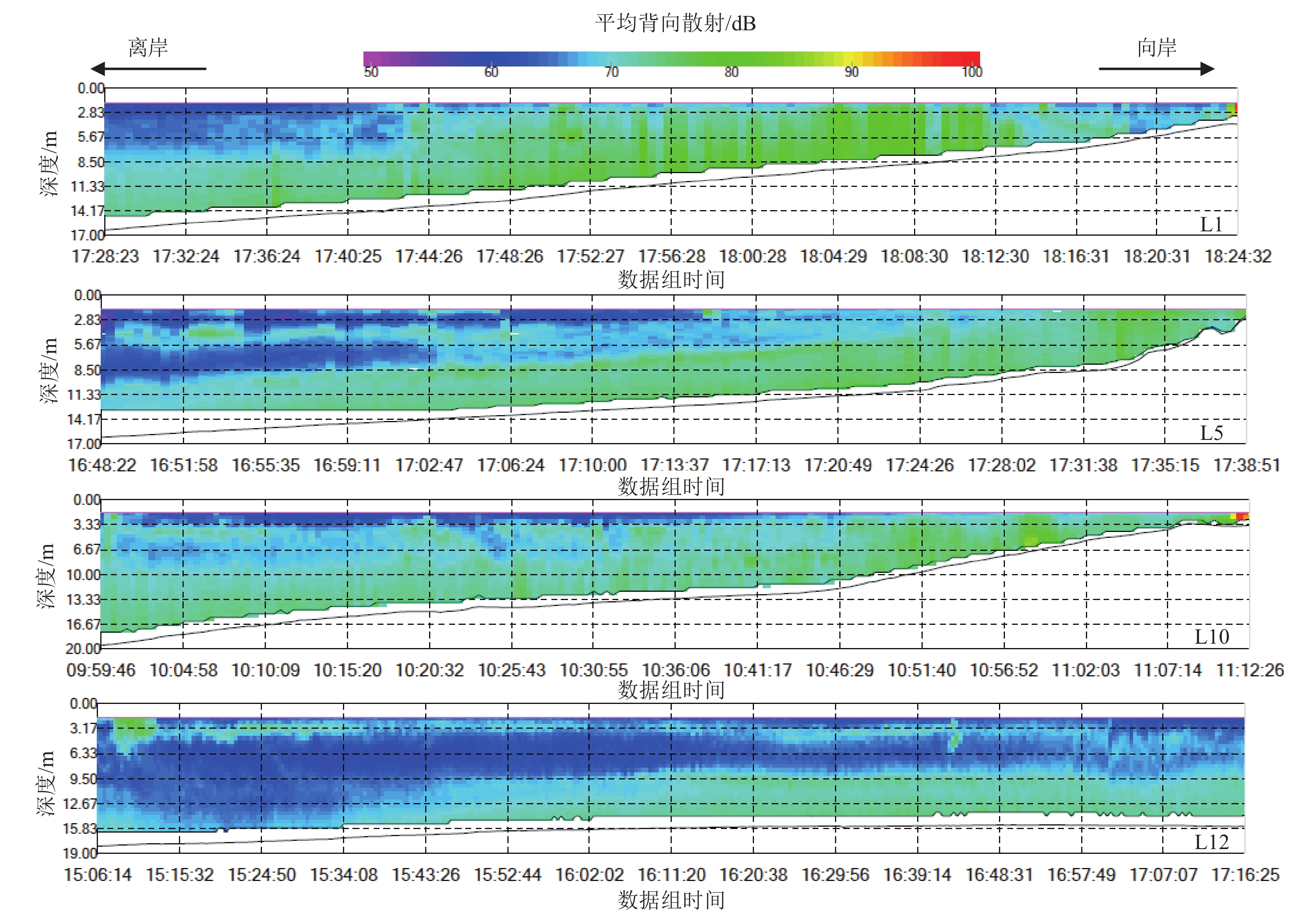

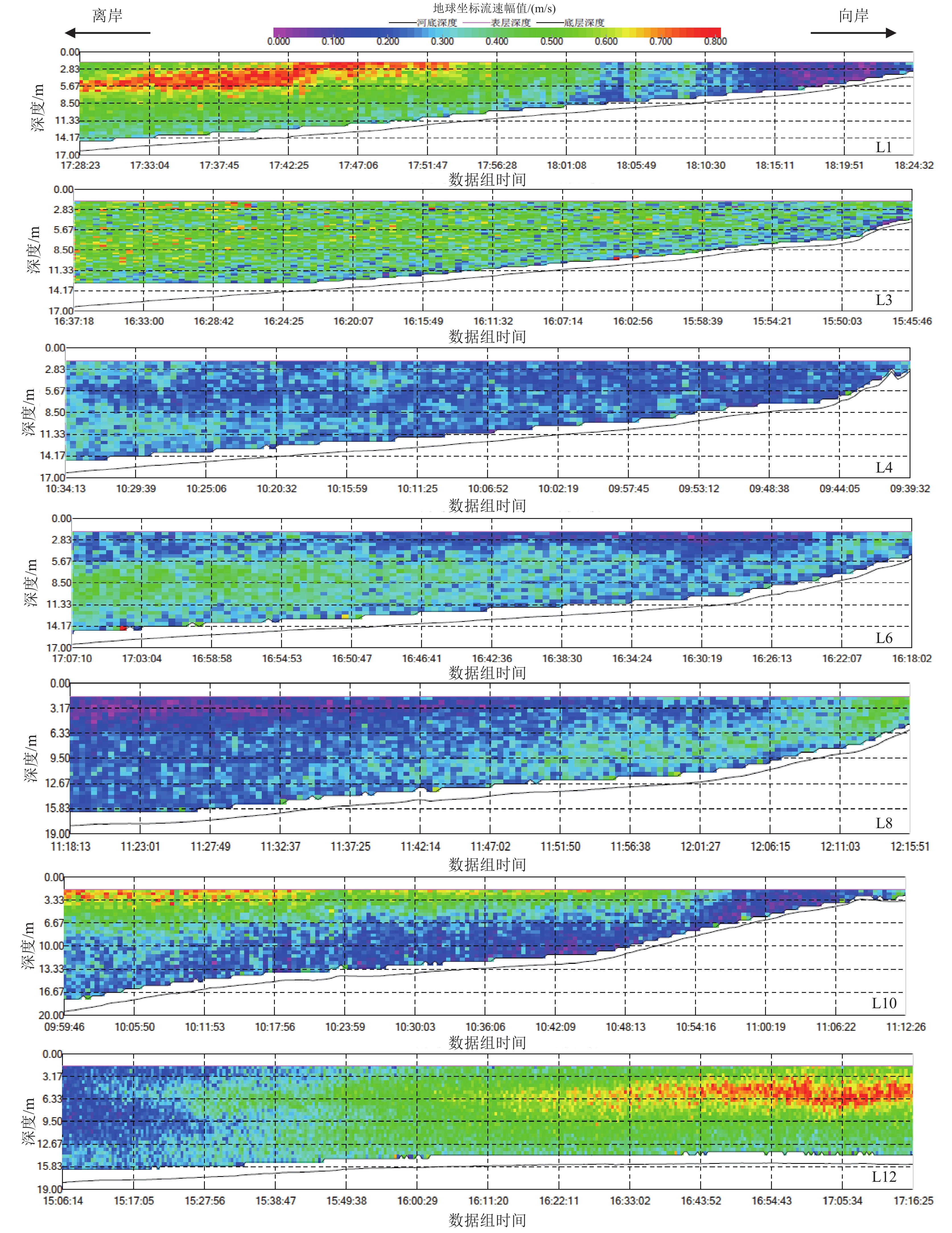

The current velocity and flow direction of the sea area were continuously profiled by ship−borne Acoustic Doppler Current Profiler (ADCP), and the distribution of suspended sediments in the sea area was qualitatively discussed according to the backscatter intensity recorded by the instrument.
Results

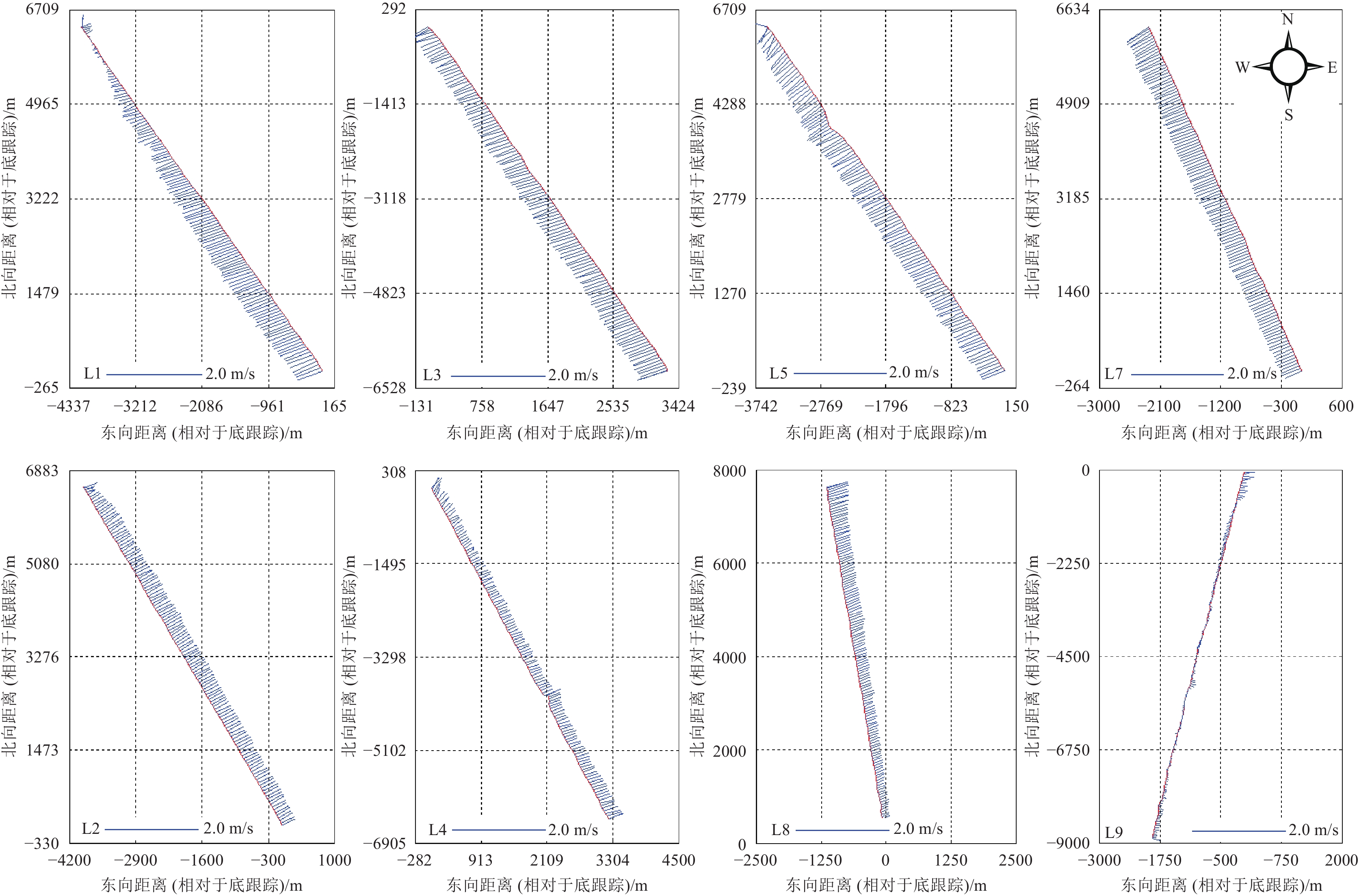

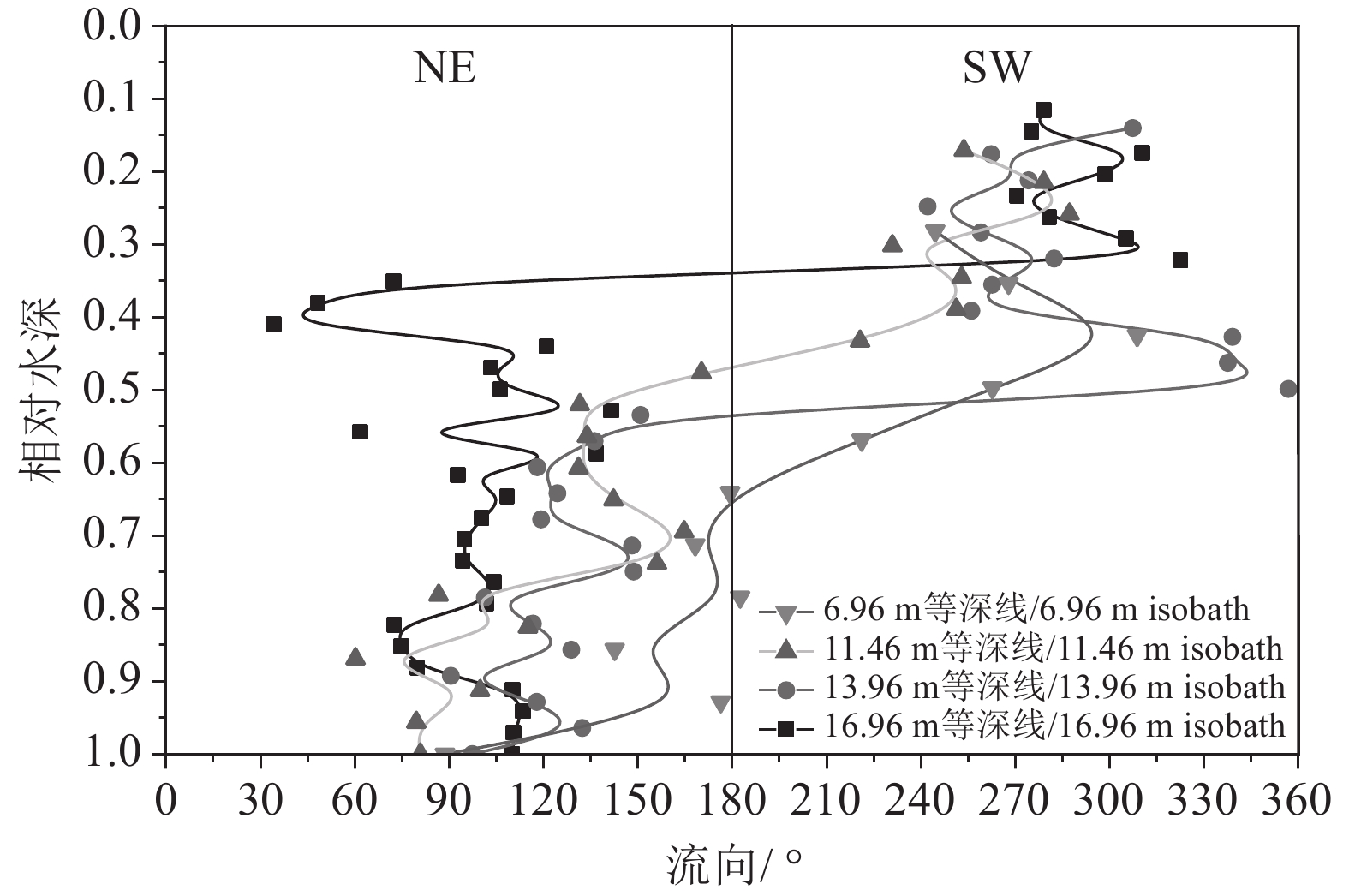

(1) The current in Xiangyun bay is mainly parallel to the coastline, which has obvious reciprocation. The magnitude of flood current was obviously larger than ebb current, the flood current was gradually weakened along the shore direction, however the ebb current in the southwest of Xiangyun bay increased along the shore direction; (2) During the transition from flat tide to ebb tide in Xiangyun Island sea area, the current turning starts from the bottom water, and the current turning and tide level change have certain lag; (3) The data of backscatter intensity shows that: there was a high concentration layer in Xiangyun bay coastal area, and the concentration increases along the shore direction, and the concentration of suspended sediment gradually decreases from northeast to southwest.
Conclusions
Xiangyun Island coastal waters under the action of the tidal current, suspended sediment along Xiangyun Island shoreline from northeast to southwest, is the main reason for the Xiangyun Island in the northeast section erosion and the southwest section deposition.
- coastal current /
- flow rate /
- suspended sediment /
- shoreline erosion /
- backscatter /
- shipborne ADCP /
- Xiangyun Island /
- Hebei Province /
- marine geological survey engineering
