EXPERIMENTAL RESEARCH ON MECHANICAL PROPERTIES OF LIMESTONE AND SANDSTONE UNDER HIGH TEMPERATURE

QIN Ben-dong; HE Jun; CHEN Lun-jian

2009 Vol. 15, No. 3

Article Contents

Article navigation > Journal of Geomechanics > 2009 > 15(3): 253-261

Next Article Previous Article

QIN Ben-dong, HE Jun, CHEN Lun-jian. EXPERIMENTAL RESEARCH ON MECHANICAL PROPERTIES OF LIMESTONE AND SANDSTONE UNDER HIGH TEMPERATURE[J]. Journal of Geomechanics, 2009, 15(3): 253-261.

Citation:

QIN Ben-dong, HE Jun, CHEN Lun-jian. EXPERIMENTAL RESEARCH ON MECHANICAL PROPERTIES OF LIMESTONE AND SANDSTONE UNDER HIGH TEMPERATURE[J]. Journal of Geomechanics, 2009, 15(3): 253-261.

EXPERIMENTAL RESEARCH ON MECHANICAL PROPERTIES OF LIMESTONE AND SANDSTONE UNDER HIGH TEMPERATURE

1.
College of Geology Engineering and Geomatics, Chang'an University, Xi'an, Shaan'xi 710054, China
2.
College of Civil Engineering, Henan Polytechnic University, Jiaozuo, Henan 454003, China
3.
College of Material Science andEngineering, Henan Polytechnic University, Jiaozuo, Henan 454003, China

Received Date: 13 April 2009

Publish Date: 25 September 2009

Abstract

Abstract

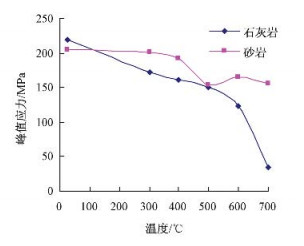

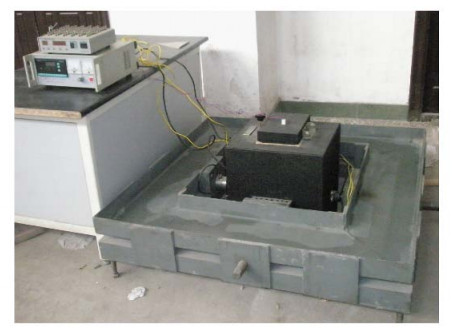

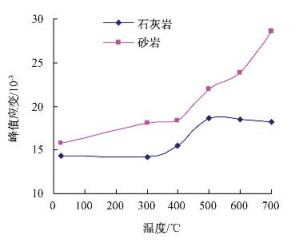

The mechanical properties of limestone and sandstone under high temperature were investigated by the experiment device used to heat rock designed by ourselves and servo-control testing machine RMT-150C. The results show that the longitudinal wave velocity of two kinds of rocks gradually reduced with temperature increasing. The complete curve of stress and strain under uniaxial compression went through 4 stages, namely densification, elasticity, yielding and failure. They both displayed brittle fracture after reaching peak strength, with the sandstone rupturing and the limestone showing failure like a bundle of grass. The high temperature weakened their strength. Their peak stresses reduced with temperature increasing. At 700 ℃, the peak strength of limestone decreased by 84.59 %, while that of sandstone only decreased by 22 %. Their peak strain increased with temperature increasing, but differed in details. For limestone, its peak strain increased by 30.57 % at 500 ℃, but almost kept unchanged at the higher temperature, and even shaw a little decrease at 700 ℃.For sandstone, however, the peak strain increased by 80.63 % at 700 ℃, displaying a connection with the variation of microstructure. With temperature increasing, their elastic modulus and deformation modulus decreased. At 700 ℃, limestone decreased by 86.8 % in elastic modulus and by 83.9 % in deformation modulus, while sandstone decreased by 46.94 % in elastic modulus and by 53.06 % in deformation modulus.
- limestone /
- sandstone /
- high temperature /
- longitudinal wave velocity /
- mechanical properties /

FullText(HTML)

References

[1]	Heuze F E. High-temperature mechanical, physical and thermal properties of granitic rocks-a review[J]. International Journal of Rock Mechanics and Mining Science & Geomechanics Abstracts, 1983, 20 (1):3~10. Google Scholar
[2]	Johnson B, Gangi A F, Handin J. Thermal cracking of rock subject to slow, uniform temperature changes[A]. In: Proceedings of 19th U S Rock Mechanics[C]. Nevada: 1978. 259~267. Google Scholar
[3]	Kingery W D.Factors affecting thermal stress resistance of ceramic materials[J]. Journal of the American Ceramic Society-- Kingery, 1955, 38 (1):3~17. Google Scholar
[4]	Heueckel T, Peano A, Pellegrint R.A constitutive law for thermo-plastic behavior of rocks:An analogy with clays[J]. Surveys in Geophys, 1994, 15:643~671. Google Scholar
[5]	许锡昌, 刘泉声.高温下花岗岩基本力学性质初步研究[J].岩土工程学报, 2006, 25 (10):2071~2078. Google Scholar XU Xi-chang, LIU Quan-sheng. A preliminary study on basic mechanical properties for granite at high temperature[J]. Chinese Journal of Geotechnical Engineering, 2006, 25 (10):2071~2078. Google Scholar
[6]	夏小和, 王颖轶, 黄醒春, 等.高温作用对大理岩强度及变形特性影响的实验研究[J].上海交通大学学报, 2004, 38 (6):996~1002. Google Scholar XIA Xiao-he, WANG Ying-yi, HUANG Xing-chun, et al.Experimental study on high temperature effect' s influence to the strength and deformation quality of marble[J]. Journal of Shanghai Jiaotong University, 2004, 38 (6):996~1002. Google Scholar
[7]	张渊, 张贤, 赵阳升.砂岩的热破裂过程[J].地球物理学报, 2005, 48 (3):656~659. Google Scholar ZHANG Yuan, ZHANG Xian, ZHAO Yang-sheng.Process of sandstone thermal cracking[J]. Chinese Journal of Geophysics, 2005, 48 (3):656~659. Google Scholar
[8]	吴忠, 秦本东, 谌论建, 等.煤层顶板砂岩高温状态下力学特征试验研究[J].岩石力学与工程学报, 2005, 24 (11):1863~1867. Google Scholar WU Zhong, QIN Ben-dong, CHEN Lun-jian, et al.Experimental study on mechanical character of sandstone of the upper plank of coal bed under high temperature[J]. Chinese Journal of Rock Mechanics and Engineering, 2005, 24 (11):1863~1867. Google Scholar
[9]	秦本东, 谌伦建, 罗运军, 等.煤层顶板砂岩高温状态下超声传播特征试验研究[J].辽宁工程技术大学学报, 2006, 25 (1):42~44. Google Scholar QIN Ben-dong, CHEN Lun-jian, LUO Yun-jun, et al.Experimental research on character of ultrasonic wave spreading in sandstone on upper plank of coal bed at high temperature[J]. Journal of Liaoning Technical University, 2006, 25 (1):42~44. Google Scholar
[10]	邱一平, 林卓英.花岗岩样品高温后损伤的试验研究[J].岩土力学, 2006, 27 (6):1005~1050. Google Scholar QIU Yi-ping, LIN Zhuo-ying.Testing Study on Damage of Granite Samples after High Temperature[J]. Rock and Soil Mechanics, 2006, 27 (6):1005~1050. Google Scholar
[11]	朱合华, 闫治国, 邓涛, 等.3种岩石高温后力学性质的试验研究[J].岩石力学与工程学报, 2006, 25 (10): 1945~1950. Google Scholar ZHU He-hua, YAN Zhi-guo, DENG Tao, et al. Testing study on mechaincal properties of tuff, granite and breccias after high temperatures[J]. Chinese Journal of Rock Mechanics and Engineering, 2006, 25 (10):1945~1950. Google Scholar
[12]	苏承东, 郭文兵, 李小双.粗砂岩高温作用后力学效应的试验研究[J].岩石力学与工程学报, 2008, 27 (6): 1162~1170. SU Cheng-dong, GUO Wen-bing, LI Xiao-shuang. Experimental research on mechanical properties of coarse sandstone after high tempertures[J]. Chinese Journal of Rock Mechanics and Engineering, 2008, 27 (6):1162~1170 Google Scholar
[13]	谌伦建, 赵洪宝, 顾海涛, 等.煤层顶板砂岩在高温下微观结构变化的研究[J].中国矿业大学学报, 2005, 34 (4):443~446. Google Scholar CHEN Lun-jian, ZHAO Hong-bao, GU Hai-tao, et al. Study on microstructure of coal roof sandstone under high temperature [J]. Journal of China University of Mining & Technology, 2005, 34 (4):443~446. Google Scholar
[14]	谌伦建, 赵洪宝, 刘希亮, 等.砂岩与石灰岩热膨胀力试验研究[J].中国矿业大学学报, 2008, 37 (5):670~674. Google Scholar CHEN Lun-jian, ZHAO Hong-bao, LIU Xi-liang, et al.Experimental research on heat swelling power of sandstone and limestone [J]. Journal of China University of Mining & Technology, 2008, 37 (5):670~674. Google Scholar
[15]	顿志林, 晁俊奇, 刘希亮, 等.高温双向约束下岩石膨胀应力测试装置的研制[J].河南理工大学学报, 2008, 27 (6):685~688. Google Scholar DUN zhi-lin, CHAO Jun-qi, LIU Xi-liang, et al.The test device design of swelling stress of rock under bidirection restraints and high temperature[J]. Journal of Henan Polytechnic University, 2008, 27 (6):685~688. Google Scholar
[16]	晁俊奇. 高温双向约束下灰岩组构及物理力学性能试验研究[D]. 焦作: 河南理工大学土木工程学院, 2008. Google Scholar CHAO Jun-qi. Experiment research of compages and physical mechanics of limestone under high temperature with both directions restricted[D]. Jiaozuo: College of Civil Engineering, Henan Polytechnic University, 2008. Google Scholar
