ROCK MECHANICS PARAMETER CALCULATION BASED ON CONVENTIONAL LOGGING DATA:A CASE STUDY OF UPPER PALEOZOIC IN ORDOS BASIN

GUI Rong; WAN Yong-ping

2012 Vol. 18, No. 4

Article Contents

Article navigation > Journal of Geomechanics > 2012 > 18(4): 418-424

Next Article Previous Article

GUI Rong, WAN Yong-ping. ROCK MECHANICS PARAMETER CALCULATION BASED ON CONVENTIONAL LOGGING DATA:A CASE STUDY OF UPPER PALEOZOIC IN ORDOS BASIN[J]. Journal of Geomechanics, 2012, 18(4): 418-424.

Citation:

GUI Rong, WAN Yong-ping. ROCK MECHANICS PARAMETER CALCULATION BASED ON CONVENTIONAL LOGGING DATA:A CASE STUDY OF UPPER PALEOZOIC IN ORDOS BASIN[J]. Journal of Geomechanics, 2012, 18(4): 418-424.

ROCK MECHANICS PARAMETER CALCULATION BASED ON CONVENTIONAL LOGGING DATA:A CASE STUDY OF UPPER PALEOZOIC IN ORDOS BASIN

GUI Rong^1,,
WAN Yong-ping²

1.
School of the Earth Sciences and Resources, China University of Geosciences, Beijing 100083, China
2.
Research Institute of Shaanxi Yanchang Petroleum(Group) Co. Ltd., Xi'an 710075, China

Received Date: 29 June 2012

Publish Date: 25 December 2012

Abstract

Abstract

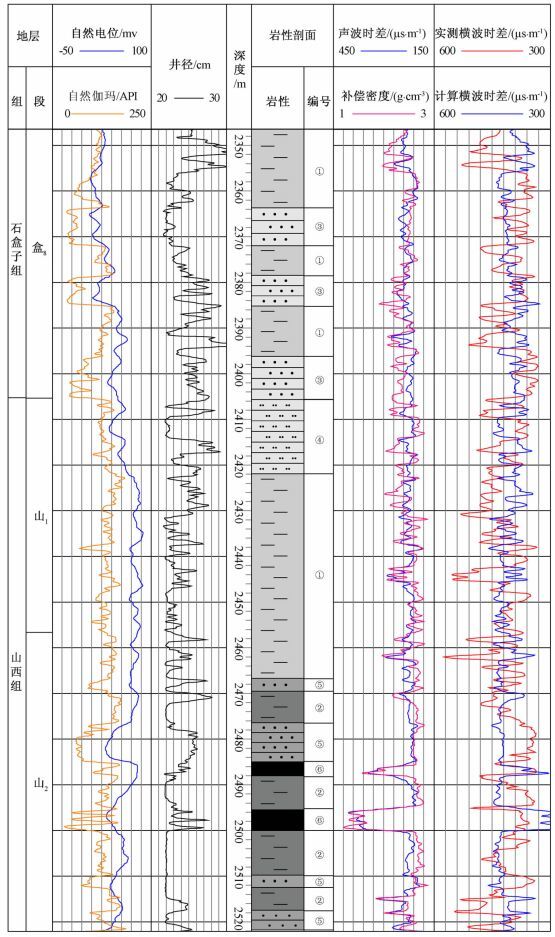

As the rock mechanics parameters such as Young modulus and Poisson ration are the basic data for drilling and completion as well as design for reservoir fracturing in oil field, and for simulation of tectonic stress field in sedimentary basin, it is the key contents that obtain rock mechanic parameters during petroleum exploration and development. Based on rock mechanic test and relations study between compressional wave slowness and shear wave slowness, this paper established the undetermined coefficients of the formula for shear wave slowness based on conventional logging data. The values obtained through the least square method for the three undetermined coefficients A, B and C are 2.74, 25.45, -370.16 respectively. The calculated shear wave slowness is consistent to the tested ones. Based on the calculated method, the results of Young modulus and Poisson ration of the Upper Paleozoic of Ordos Basin are range from 35593 MPa to 37997 MPa and from 0.21 to 0.25 respectively. The establishment of the formula for the rock mechanics and the study on the rock mechanical parameters laid a theoretical foundation on the research work of gas field exploration and development.
- conventional logging /
- shear wave slowness /
- rock mechanics parameter /
- Ordos Basin /
- the Upper Paleozoic

FullText(HTML)

References

[1]	Brown E T. Rock mechanics in Australia[J]. International Journal of Rock Mechanics & Mining Sciences, 2002, 39(5):529~538. Google Scholar
[2]	金衍, 陈勉, 柳贡慧, 等.大位移井的井壁稳定力学分析[J].地质力学学报, 1999, 5(1):4~11. Google Scholar JIN Yan, CHEN Mian, LIU Gong-hui, et al. Well bore stability analysis of extended reach wells[J]. Journal of Geomechanics, 1999, 5(1):4~11. Google Scholar
[3]	李金柱, 李双林.岩石力学参数的计算及应用[J].测井技术, 2003, 27(增刊):15~18. Google Scholar LI Jin-zhu, LI Shuang-lin. Calculation of rock mechanics parameters using compressional and shear waves data and its application[J].Well Logging Techonology, 2003, 27(Supp.):15~18. Google Scholar
[4]	孙东生, 王红才, 侯默, 等.影响水力压裂效果的因素及人工神经网络评价[J].地质力学学报, 2006, 12(4):485~491. Google Scholar SUN Dong-sheng, WANG Hong-cai, HOU Mo, et al. Factors influencing the effects of hydrofracturing in a low-permeability oilfield and potential evaluation using artificial neural network[J]. Journal of Geomechanics, 2006, 12(4):485~491. Google Scholar
[5]	蒋廷学, 汪永利, 丁云宏, 等.由地面压裂施工压力资料反求储层岩石力学参数[J].岩石力学与工程学报, 2004, 23(14):2424~2429. doi: 10.3321/j.issn:1000-6915.2004.14.024 CrossRef Google Scholar JIANG Ting-xue, WANG Yong-li, DING Yun-hong, et al. Determination of rock mechanics parameters by pressure of surface fracturing treatment[J]. Chinese Journal of Rock Mechanics and Engineering, 2004, 23(14):2424~2429. doi: 10.3321/j.issn:1000-6915.2004.14.024 CrossRef Google Scholar
[6]	王建强, 张丽君.利用横波时差计算孔隙度的方法研究[J].石油天然气学报, 2007, 29(6):92~94. Google Scholar WANG Jian-qiang, ZHANG Li-jun. Method for computing porosity by using shear moveout[J]. Journal of Oil and Gas Technology, 2007, 29(6):92~94. Google Scholar
[7]	Murphy W, Reischer A, Hsu K. Modulus decomposition of compressional and shear velocities in sand bodies[J]. Geophysics, 1993, 58(2):227~239. doi: 10.1190/1.1443408 CrossRef Google Scholar
[8]	路保平, 鲍洪志.岩石力学参数求取方法进展[J].石油钻探技术, 2005, 33(5):44~47. Google Scholar LU Bao-ping, BAO Hong-zhi. Advances in calculation methods for rock mechanics parameters[J].Petroleum Drilling Techniques, 2005, 33(5):44~47. Google Scholar
[9]	Wang Qian, Ji Shaocheng, Sun Shengsi, et al. Correlations between compressional and shear wave velocities and corresponding Poisson's ratios for some common rocks and sulfide ores[J]. Tectonophysics, 2009, 469(1):61~72. Google Scholar
[10]	杨秀娟, 张敏, 闫相祯.基于声波测井信息的岩石弹性力学参数研究[J].石油地质与工程, 2008, 22(4):39~42. Google Scholar YANG Xiu-juan, ZHANG Min, YAN Xiang-zhen. Study on acoustic logging-based rock elasticity parameters[J]. Petroleum Geology and Engineering, 2008, 22(4):39~42. Google Scholar
[11]	朱留方, 沈建国.从阵列声波测井波形处理地层纵、横波时差的新方法[J].地球物理学进展, 2006, 21(2):483~488. Google Scholar ZHU Liu-fang, SHEN Jian-guo. The new method of processing the slowness of P-and S-wave from waveforms of array sonic logging[J]. Progress in Geophysics, 2006, 21(2):483~488. Google Scholar
[12]	Oyler D C, Mark C, Molinda G M. In situ estimation of roof rock strength using sonic logging[J]. International Journal of Coal Geology, 2010, 83(4):484~490. doi: 10.1016/j.coal.2010.07.002 CrossRef Google Scholar
[13]	万永平, 李园园, 梁晓.基于流体包裹体的储层微裂缝研究——以陕北斜坡上古生界为例[J].地质与勘探, 2010, 46(4):711~715. Google Scholar WAN Yong-ping, LI Yuan-yuan, LIANG Xiao. Fractures of reservoirs inferred from fluid inclusions:A case study of the Upper Paleozoic of northern Shaanxi Slope[J]. Geology and Exploration, 2010, 46(4):711~715. Google Scholar
[14]	尤明庆.岩样三轴压缩的破坏形式和Coulomb强度准则[J].地质力学学报, 2002, 8(2):179~185. Google Scholar YOU Ming-qing. Destroy character and coulomb criterion of rock specimen in pseudo-triaxial compression[J]. Journal of Geomechanics, 2002, 8(2):179~185. Google Scholar
[15]	王冠贵.声波测井理论基础及其应用[M].北京:石油工业出版社, 1988:47~49. Google Scholar WANG Guan-gui. Acoustic logging theory and its applicaton[M]. Beijing:Petroleum Industry Press, 1988:47~49. Google Scholar
[16]	王玉梅, 苗永康, 孟宪军, 等.岩石物理横波速度曲线计算技术[J].油气地质与采收率, 2006, 13(4):94~96. Google Scholar WANG Yu-mei, MIAO Yong-kang, MEN Xian-jun, et al. Calculation procedure of shear velocity curve on petrophysics[J]. Petroleum Geology and Recovery Efficiency, 2006, 13(4):94~96. Google Scholar
