GRAVITY, MAGNETIC AND ELECTRIC COMPREHENSIVE GEOPHYSICAL PROSPECTING FOR DEEP STRUCTURES IN HETAO BASIN

LIU Rong; MA Jian-qing; LI Qing-chun; YE Pei-sheng

2016 Vol. 22, No. 4

Article Contents

Article navigation > Journal of Geomechanics > 2016 > 22(4): 943-954

Next Article Previous Article

LIU Rong, MA Jian-qing, LI Qing-chun, YE Pei-sheng. GRAVITY, MAGNETIC AND ELECTRIC COMPREHENSIVE GEOPHYSICAL PROSPECTING FOR DEEP STRUCTURES IN HETAO BASIN[J]. Journal of Geomechanics, 2016, 22(4): 943-954.

Citation:

LIU Rong, MA Jian-qing, LI Qing-chun, YE Pei-sheng. GRAVITY, MAGNETIC AND ELECTRIC COMPREHENSIVE GEOPHYSICAL PROSPECTING FOR DEEP STRUCTURES IN HETAO BASIN[J]. Journal of Geomechanics, 2016, 22(4): 943-954.

GRAVITY, MAGNETIC AND ELECTRIC COMPREHENSIVE GEOPHYSICAL PROSPECTING FOR DEEP STRUCTURES IN HETAO BASIN

1.
School of Geological Engineering and Geomatics, Chang'an University, Xi'an, Shaanxi 710054, China
2.
Institute of Geomechanics, Chinese Academy of Geological Sciences, Beijing 100081, China

More Information

Corresponding author: MA Jian-qing, majianqing1984@126.com

Received Date: 16 September 2016

Publish Date: 25 December 2016

Abstract

Abstract

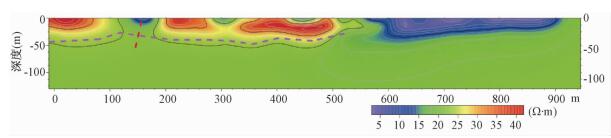

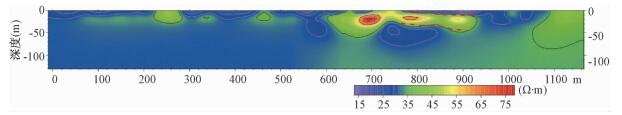

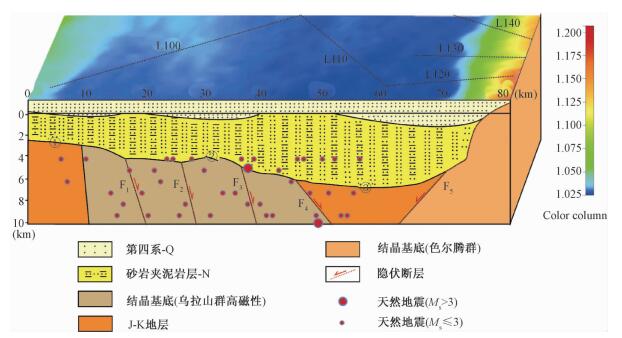

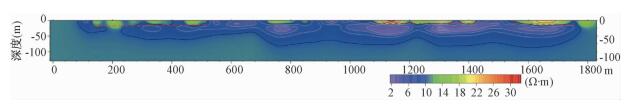

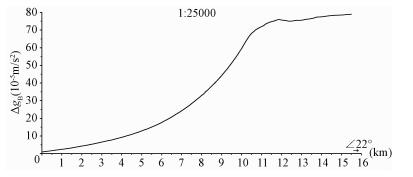

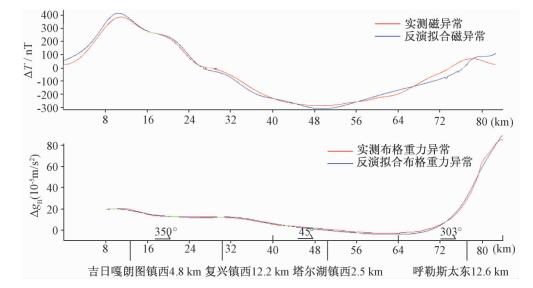

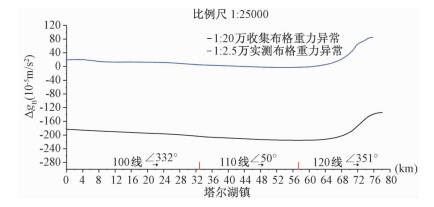

The gravity, magnetic, and electrical methods have been used to reveal the structure developed in the deep covered area of the Hetao Basin. We have carried out a lot of research on the characteristics of the northern and southern boundary faults, the features and thickness of Quaternary sediments and the structures developed in the basement of the Hetao Basin. A preliminary study on the distribution of Quaternary aquifer in this area was made by using electrical resistivity method. The joint inversion results of gravity and magnetic data, and earthquake data have been analyzed. And four concealed fault F₁ to F₄ from south to north and Langshan-Seertengshan piedmont fault F₅ have been revealed. The fluctuation and buried depth of the crystalline basement in the area have been revealed. Depth of the basement in the southern part of the study area is about 2.5~4.2 km, and which in the northern part is up to 6 km. North Adjacent to the Seertengshan piedmont fault, the basement rock has been uplifted to about 0-1 km.
- Hetao Basin /
- magnetic prospecting /
- gravity exploration /
- ultrahigh density resistivity method /
- crystalline basement /
- buried fault

FullText(HTML)

References

[1]	张永谦, 滕吉文, 王谦身, 等.河套盆地及其邻近地域的地壳结构与深层动力学过程[J].地球物理学进展, 2013, 28(5):2264~2272. doi: 10.6038/pg20130508 CrossRef Google Scholar ZHANG Yong-qian, TENG Ji-wen, Wang Qian-shen, et al.Crustal structure and the geodynamic process beneath the Hetao basin and adjacent area[J].Progress in Geophysics, 2013, 28(5):2264~2272. doi: 10.6038/pg20130508 CrossRef Google Scholar
[2]	赵重远, 郭忠铭, 惠斌耀.河套弧形构造体系及其形成和演化机制[J].石油与天然气地质, 1984, 5(4):350~361. Google Scholar ZHAO Zhong-yuan, GUO Zhong-ming, HUI Bin-yao.Hetao arcuate tectonic system and its their mechanism of formation and evolution[J].Oil and Gas Geology, 1984, 5(4):350~361. Google Scholar
[3]	陈志勇.内蒙古色尔腾山的推覆构造[J].地球科学:中国地质大学学报, 2000, 25(3):237~241. Google Scholar CHEN Zhi-yong.Nappe structure in Mount Seerteng, Inner Mongolia[J]. Earth Science:Journal of China University of Geosciences, 2000, 25(3):237~241. Google Scholar
[4]	冉永康, 陈立春, 杨晓萍, 等.鄂尔多斯北缘主要活动断裂晚第四纪强震复发特征[J].中国科学(D辑), 2003, 33(增刊):135~143. Google Scholar RAN Yong-kang, CHEN Li-chun, YANG Xiao-ping, et al. Late Quaternary strong earthquake recurrence characteristics of the main active faults in the northern margin of the Ordos Basin[J].Chinese Science (Series D), 2003, 33(Suppl.):135~143. Google Scholar
[5]	邓起东, 程绍平, 闵伟, 等.鄂尔多斯块体新生代构造活动和动力学的讨论[J].地质力学学报, 1999, 5(3):13~22. Google Scholar DENG Qi-dong, CHENG Shao-ping, MIN Wei, et al.Discussion on the Cenozoic tectonic activities and dynamics of Ordos block[J].Journal of Geomechanics, 1999, 5(3):22~13. Google Scholar
[6]	张岳桥, 施炜, 廖昌珍, 等.鄂尔多斯盆地周边断裂运动学分析与晚中生代构造应力体制转换[J].地质学报, 2006, 80(5):639~647. Google Scholar ZHANG Yue-qiao, SHI Wei, LIAO Chang-zhen, et al. Fault kinematic analysis and change in Late Mesozoic tectonic stress regimes in the peripheral zones of the Ordos Basin, north China[J]. Acta Geologica Sinica, 2006, 80(5):639~647. Google Scholar
[7]	赵俊峰, 刘池洋, 喻林, 等.鄂尔多斯盆地中生代沉积和堆积中心迁移及其地质意义[J].地质学报, 2008, 82(4):540~552. Google Scholar ZHAO Jun-feng, LIU Chi-yang, Yu Lin, et al.The transfer of depocenters and accumulation centers of Ordos Basin in Mesozoic and its meaning[J].Acta Geologica Sinica, 2008, 82(4):540~552. Google Scholar
[8]	滕吉文, 王夫运, 赵文智, 等.鄂尔多斯盆地上地壳速度分布与沉积建造和结晶基底起伏的构造研究[J].地球物理学报, 2008, 51(6):1753~1766. Google Scholar TENG Ji-wen, WANG Fu-yun, ZHAO Wen-zhi, et al. Velocity distribution of upper crust, undulation of sedimentary formation and crystalline basement beneath the Ordos basin in north China[J]. Chinese Journal of Geophysics, 2008, 51(6):1753~1766. Google Scholar
[9]	张永谦, 滕吉文, 王夫运, 等.阴山造山带及鄂尔多斯盆地北部地区上地壳的地震波属性结构及岩性推断[J].地球物理学报, 2011, 54(1):87~97. Google Scholar ZHANG Yong-Qian, TENG Ji-wen, WANG Fu-yun, et al.Structure of the seismic wave property and lithology deduction of the upper crust beneath the Yinshan orogenic belt and the northern Ordos block[J]. Chinese Journal of Geophysics, 2011, 54(1):87~97. Google Scholar
[10]	滕吉文, 王夫运, 赵文智, 等.阴山造山带-鄂尔多斯盆地岩石圈层、块速度结构与深层动力过程[J].地球物理学报, 2010, 53(1):67~85. Google Scholar TENG Ji-wen, WANG Fu-yun, ZHAO Wen-zhi, et al.Velocity structure of layered block and deep dynamic process in the lithosphere beneath the Yinshan orogenic belt and Ordos Basin[J].Chinese Journal of Geophysics, 2010, 53(1):67~85. Google Scholar
[11]	Geological Bureau of Inner Mongolia Autonomous Region. Regional geological survey report of the People's Republic of China (Geology):Wulatehouqi amplitude, Linhe County[M]. Hohhot:Geological Bureau of Inner Mongolia Autonomous Region, 1982. Google Scholar
[12]	袁晓灵.河套盆地M_s ≥ 5.5级地震前地震活动性特征[J].华北地震科学, 2001, 19(2):27~34. Google Scholar YUAN Xiao-ling.Character of seismicity before the M_s ≥ 5.5 earthquakes in Hetao Basin[J]. North China Earthquake Science, 2001, 19(2):27~34. Google Scholar
[13]	吴福元, 葛文春, 孙德有, 等.中国东部岩石圈减薄研究中的几个问题[J].地学前缘, 2003, 10(3):51~60. Google Scholar WU Fu-yuan, GE Wen-chun, SUN De-you, et al.Discussions on the lithospheric thinning in eastern China[J]. Earth Science Frontiers, 2003, 10(3):51~60. Google Scholar
[14]	周新华.中国东部中、新生代岩石圈转型与减薄研究若干问题[J].地学前缘, 2006, 13(2):50~64. Google Scholar ZHOU Xin-hua.Major transformation of subcontinental lithosphere beneath eastern China:Review and prospect[J].Earth Science Frontiers, 2006, 13(2):50~64. Google Scholar
[15]	阮小敏, 滕吉文, 安玉林, 等.阴山造山带和鄂尔多斯盆地北部磁异常场与结晶基底特征研究[J].地球物理学报, 2011, 54(9):2272~2282. Google Scholar RUAN Xiao-min, TENG Ji-wen, AN Yu-lin, et al.Analysis of magnetic anomaly and crystalline basement of the Yinshan orogen and the northern Ordos basin regions[J].Chinese Journal of Geophysics, 2011, 54(9):2272~2282. Google Scholar
[16]	冯锐, 郑书真, 黄桂芳, 等.华北地区重力场与沉积层构造[J].地球物理学报, 1989, 32(4):385~398. Google Scholar FENG Rui, ZHENG Shu-zhen, HUANG Gui-fang, et al. Gravity field and structure of the sedimentary layer in North China[J]. Acta Geophysica Sinica, 1989, 32(4):385~398. Google Scholar
[17]	王涛, 徐鸣洁, 王良书, 等.鄂尔多斯及邻近区航磁异常特征及其大地构造意义[J].地球物理学报, 2007, 50(1):163~170. Google Scholar WANG Tao, XU Ming-jie, WANG Liang-shu, et al. Aeromagnetic anomaly analysis of Ordos and adjacent regions and its tectonic implications[J]. Chinese Journal of Geophysics, 2007, 50(1):163~170. Google Scholar
[18]	内蒙古第一物探大队. 内蒙古自治区1: 50万航空磁力异常图和1: 100万布格重力异常图综合研究报告(1987-1990年)[R]. 呼和浩特: 内蒙古第一物探大队, 1991. Google Scholar The First Geophysical Prospecting Brigade in Inner Mongolia. Comprehensive research report of 1:500000 aeromagnetic anomaly map and 1:100000 Bouguer gravity anomaly map in Inner Mongolia Autonomous Region (1987-1990)[R]. Hohhot:The First Geophysical Prospecting Brigade in Inner Mongolia, 1991. Google Scholar
[19]	何泽新, 张绪教, 贾丽云, 等.内蒙古狼山山前台地成因及其新构造运动意义[J].现代地质, 2014, 28(1):98~108. Google Scholar HE Ze-xin, ZHANG Xu-jiao, JIA Li-yun, et al.Genesis of piedmont terraces and its Neotectonic movement significance in Langshan Mountain area, Inner Mongolia[J]. Geoscience, 2014, 28(1):98~108. Google Scholar
[20]	张振法.内蒙古主要山体"山根"问题研讨——山形异常和镜像异常补偿模式[J].物探与化探, 1990, 14(3):232~238. Google Scholar ZHANG Zhen-fa.A study of 'mountain root' problem for the main mountain mass of Inner Mongolia:Compensation models for mountain-shape anomaly and mirror-image anomaly[J]. Geophysical and Geochemical Exploration, 1990, 14(3):232~238. Google Scholar
[21]	钟韬. 超高密度电法在探测采空区中的应用研究[D]. 成都: 成都理工大学, 2008.http://cdmd.cnki.com.cn/Article/CDMD-10616-2008086144.htm Google Scholar ZHONG Tao. Application research of ultra high density electrical method in the detection of mined out area[D]. Chengdu:Chengdu University of Technology, 2008. Google Scholar
[22]	国家地震局《鄂尔多斯周缘活动断裂系》课题组.鄂尔多斯周缘活动断裂系[M].北京:地震出版社, 1988:1~328. Google Scholar Research Group of the Active Faults around Ordos Department in State Seismological Bureau. Active fault system around Ordos[M].Beijing:Seismological Press, 1988:1~328. Google Scholar
